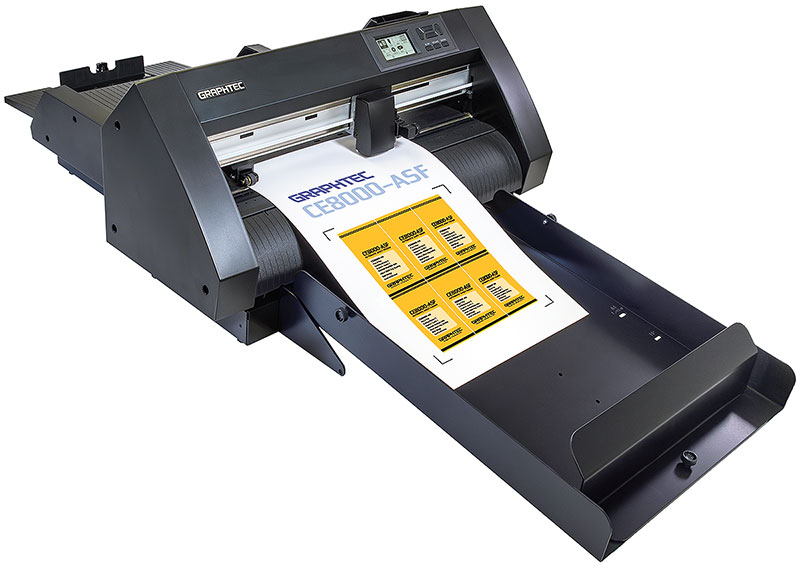

CE8000-ASF (Auto Sheet Feeder)

Graphtec High Volume Sheet Feeding and Cutting Unit

Cut Labels Quickly and Efficiently

Introducing the Graphtec CE8000-ASF, an advanced and versatile automatic sheet feeding system designed to streamline cutting operations and maximize production efficiency. Engineered to work seamlessly with the Graphtec CE8000-40 cutting plotter, this re-engineered feeder delivers fast, reliable, and high-volume cutting performance.

The Automatic Feeder Unit accommodates a wide variety of media, including paper, vinyl, synthetic materials, and cardstock up to 16pt thick, in sizes ranging from 8.5" x 11" to 13" x 19".

Graphtec CE8000-ASF Warranty banner

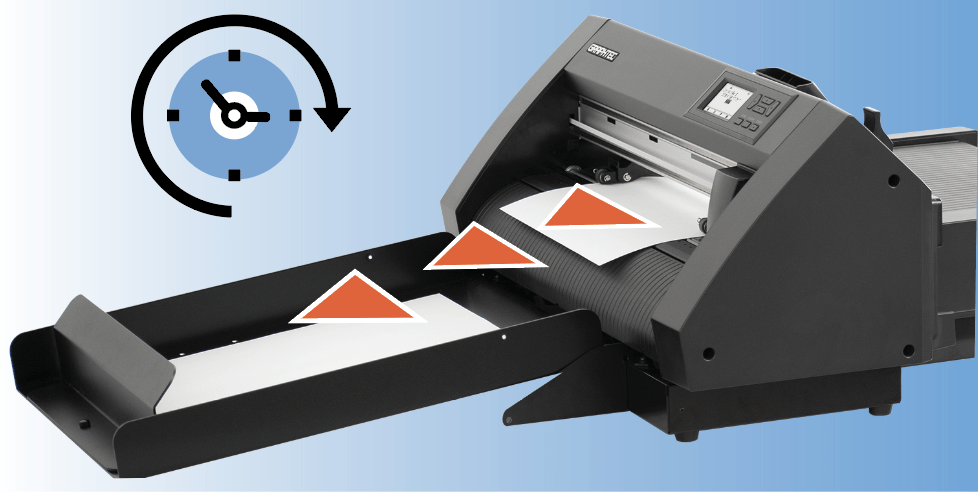

Graphtec ASF-Automated Output

Graphtec's advanced feeding mechanism ensures smooth, consistent media handling while minimizing skewing for accurate alignment and dependable cutting results across a variety of materials.

With the ability to handle up to 150 sheets per loading cycle (depending on media thickness), the CE8000-ASF is built for extended production runs. Even better, additional sheets can be loaded while the system is operating, allowing production to continue without interruption. This convenient feature sets the CE8000-ASF apart from conventional sheet-feeding systems.

Graphtec size chart

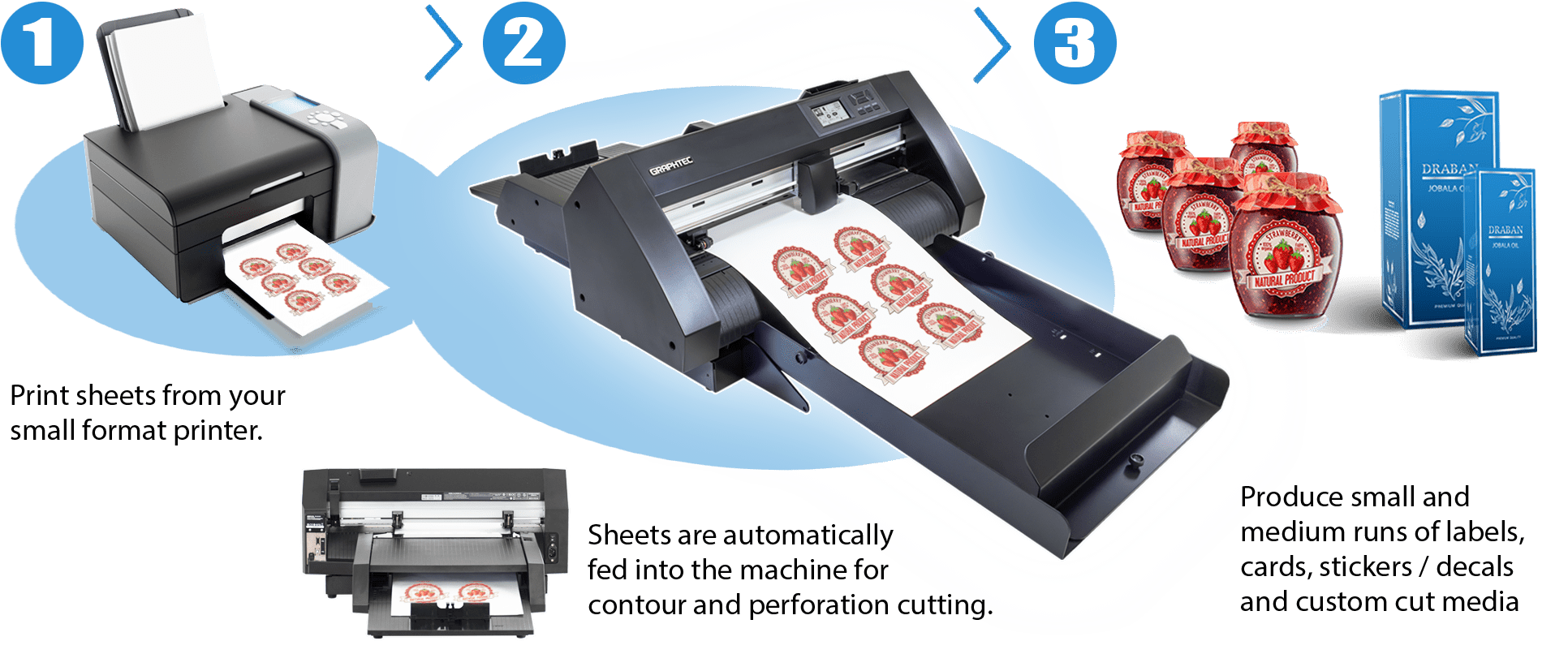

Graphtec CE8000-ASF Features

Combining precision, reliability, and ease of operation, the CE8000-ASF is an ideal solution for businesses looking to increase productivity and simplify high-volume label and graphics production.

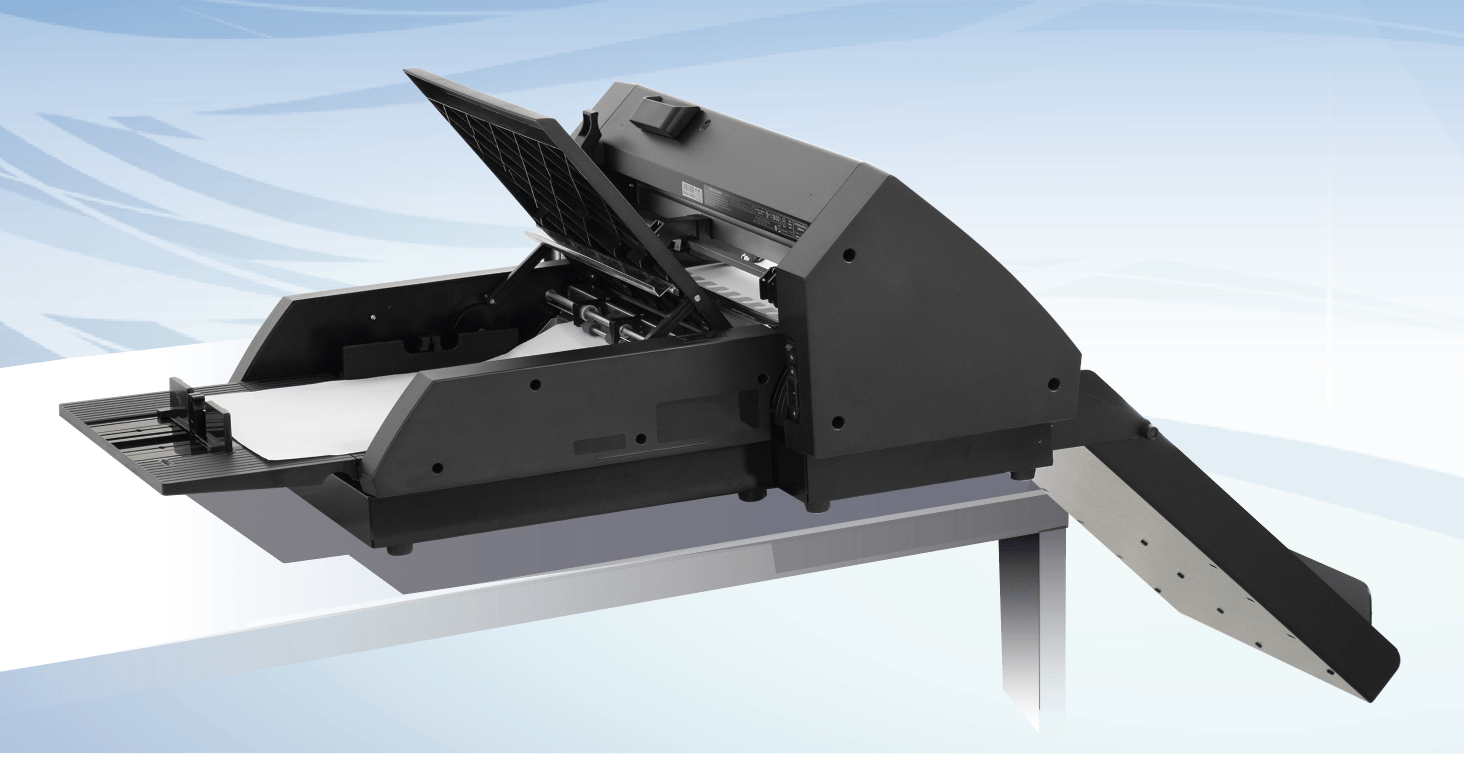

Graphtec CE8000-ASF Table

Auto Sheet Feeder

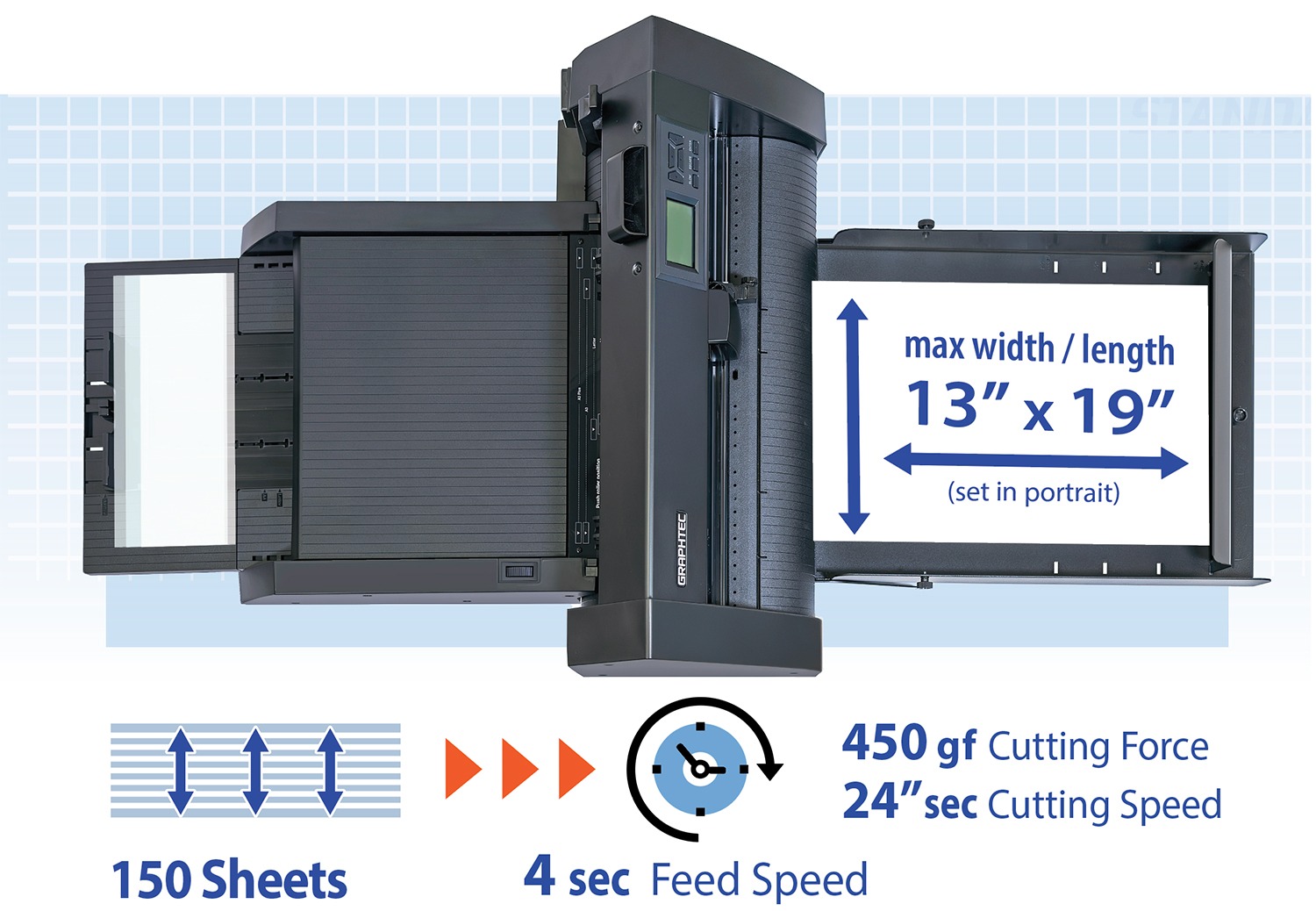

Graphtec CE8000-ASF Features Chart

High-Capacity Loading

With a capacity of up to 150 sheets (depending on media thickness) and an average feeding interval of just 4 seconds between sheets, the CE8000-ASF is designed to keep production moving. Its automated operation allows users to load their media and step away while the system continues processing jobs with minimal supervision.

For precise registration and cutting accuracy, the CE8000-ASF can read up to four registration marks on the first sheet. Once the initial alignment is established, the system can continue feeding subsequent sheets using an optional one- or two-mark registration process.

Graphtec CE8000-ASF Warranty banner

Versatile Media Handling

From standard paper and vinyl to synthetic media and cardstock up to 16pt thick, the CE8000-ASF offers the flexibility to handle a wide range of applications. Graphtec's innovative feeding mechanism minimizes media skewing, helping ensure consistent feeding and accurate cutting results.

Compatible media sizes range from 8.5" x 11" to 13" x 19", making it suitable for a variety of label, decal, and graphics production needs.

Graphtec CE8000-ASF Table

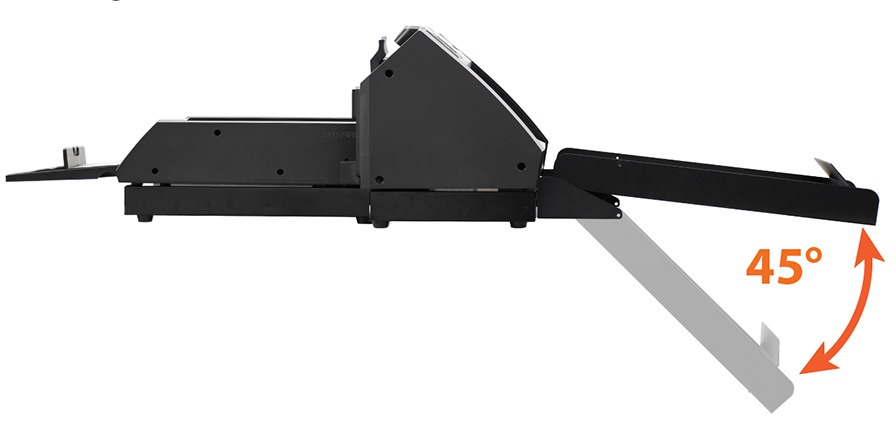

Adjustable Output Tray

The adjustable output tray provides added flexibility for handling finished materials. Users can position the tray at either a 45-degree angle or a flat configuration, allowing them to choose the optimal setup for their media and workflow.

Graphtec CE8000-ASF tray 45 degree
Graphtec CE8000-ASF Variable Data

Advanced Features

Variable Data & Serialization with Graphtec Studio 2

When paired with Graphtec Studio 2 design software, the CE8000-ASF supports variable data and serialization workflows, making it easy to produce high volumes of customized labels with unique information. This capability is ideal for applications requiring sequential numbering, product identification, and improved job tracking and traceability.

Powerful, User-Friendly Software

Every new Graphtec cutter includes your choice of Cutting Master 5, a plug-in for Adobe Illustrator and CorelDRAW (Graphics Suite only), or Graphtec Studio 2, Graphtec's intuitive software for designing and cutting graphics.

Both software solutions are compatible with Windows PC and Mac, with convenient connectivity options through USB or Ethernet.

At Graphtec, we make professional cutting simple. From advanced cutting technology to user-friendly software, everything is designed to make your workflow easier and more efficient.

Make your next project easier with Graphtec! Contact your Graphtec Authorized Reseller today.

Graphtec Softwares
Graphtec Studio 2-Logo

Cutter Features

  • Touch Screen and Mechanical Keys
  • New Menu Structure
  • Integrated Firmware Updates

New Touch Panel

The CE8000-40 features a redesigned touch panel that offers greater flexibility and ease of operation. Its Blind Touch Operation allows operators to keep their eyes on the media as it feeds, helping maintain workflow efficiency without constantly looking at the control panel.

The updated menu structure features an intuitive touchscreen interface with easy-to-recognize icons, making navigation and machine operation simpler and more efficient.

Convenient Firmware Management:

  • Check for available firmware updates directly through the software.
  • Download and install firmware updates via optional Wireless LAN or USB.
  • Update firmware offline using a USB flash drive.

New Blade Holder & Tool Compartment

The redesigned Tool Holder makes changing tools and adjusting blade positions easier than ever. Simply slide the stopper forward or backward to quickly reposition the tool.

The new Tool Compartment features a magnetic base, allowing it to be easily repositioned anywhere on the cutter or removed entirely when additional workspace is needed.

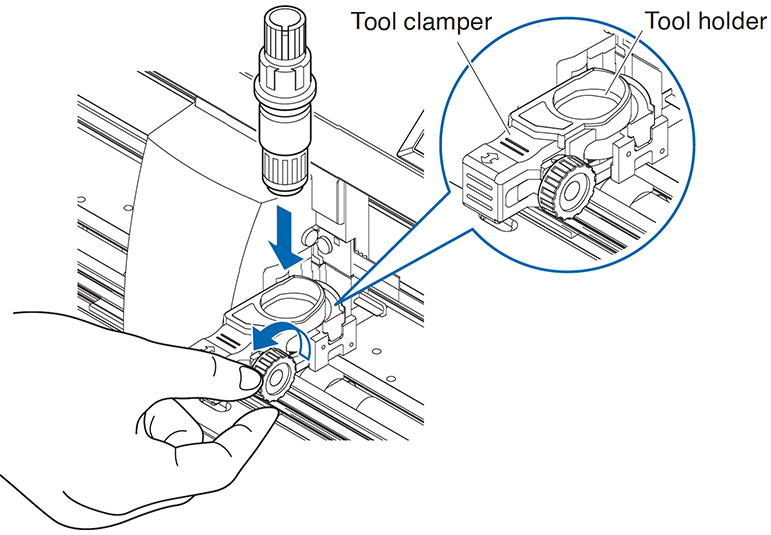

Graphtec Blade Holder Assembly Diagram

Expanded Network Connectivity

The CE8000-40 offers flexible connectivity options to accommodate a variety of production environments. An optional Wireless LAN connection provides greater freedom when choosing the cutter's installation location, while the standard Ethernet port supports reliable, high-speed network connectivity.

USB Offline Operation

A secondary USB port provides convenient offline operation, allowing users to transfer cutting jobs directly from a USB flash drive without connecting to a computer. Simply select the desired file or use the barcode function to locate and process cutting data directly from the USB drive.

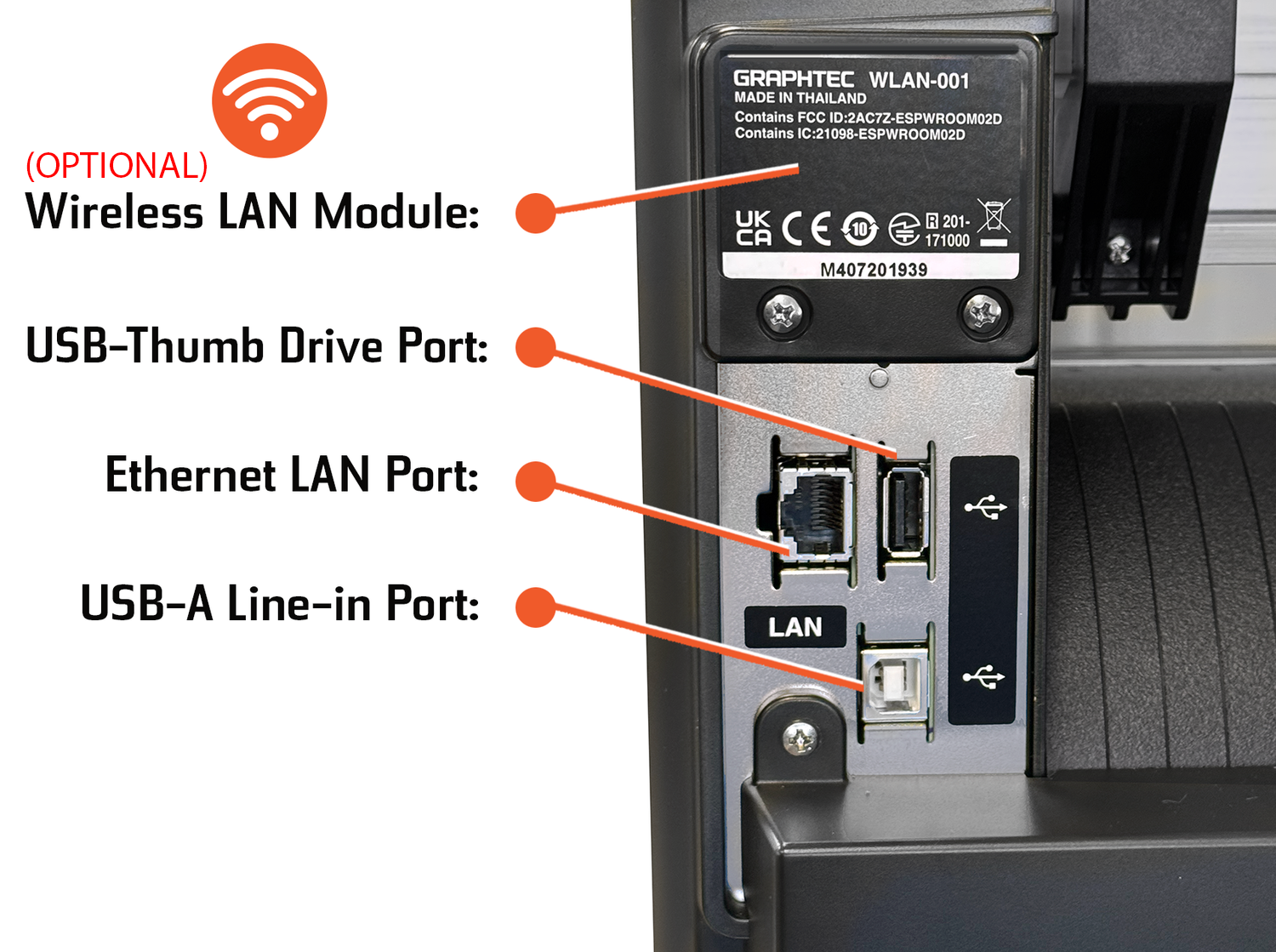

Graphtec ASF Connections

DataLink Barcode System

Streamline Production and Minimize Errors

Graphtec's DataLink Barcode System simplifies job management, saves valuable production time, and minimizes the risk of errors when processing multiple cutting jobs. With a simple scan of the barcode, operators can quickly retrieve the corresponding cutting data and automate the job setup process.

DataLink is designed to work with virtually any combination of RIP software and printer, as well as Graphtec's bundled software, including Cutting Master 5 and Graphtec Studio 2.

The CE8000 automatically identifies cutting data associated with printed barcodes stored on a connected PC or USB flash drive. It then retrieves the appropriate file, applies the corresponding cutting settings, and initiates the cutting process automatically, helping create a more seamless and efficient print-and-cut workflow.

E-mail Notifications

Stay informed throughout the production process with convenient E-mail Notifications. The CE8000-40 can automatically send notifications when cutting jobs are completed or when an error occurs, keeping operators updated on machine status without requiring constant monitoring.

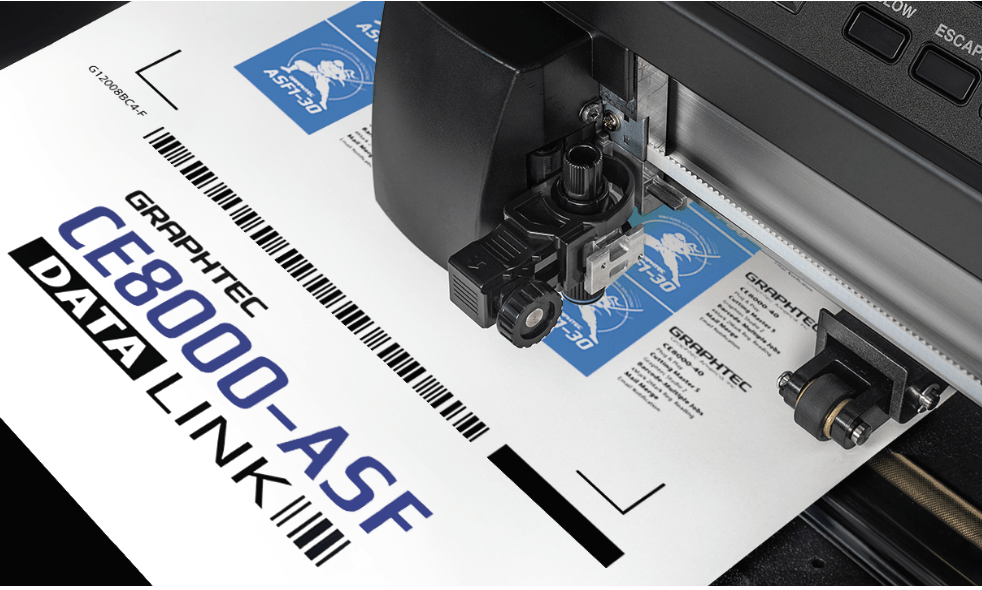

CE8000-ASF Datalink Barcode
Graphtec CE8000 Tool Position

New ARMS 9.0 Registration System

The CE8000-40 introduces ARMS 9.0 (Advanced Registration Mark Sensing System), featuring enhanced capabilities for precise and efficient print-and-cut applications.

A major addition is the integration of Graphtec's DataLink Barcode System, which allows barcodes to be generated and printed directly as part of the original design. This enables automated job identification and cutting-data retrieval, reducing manual intervention and creating a more hands-free production workflow.

Improved registration mark detection also delivers faster reading speeds, helping increase overall productivity while maintaining precise contour-cutting accuracy.

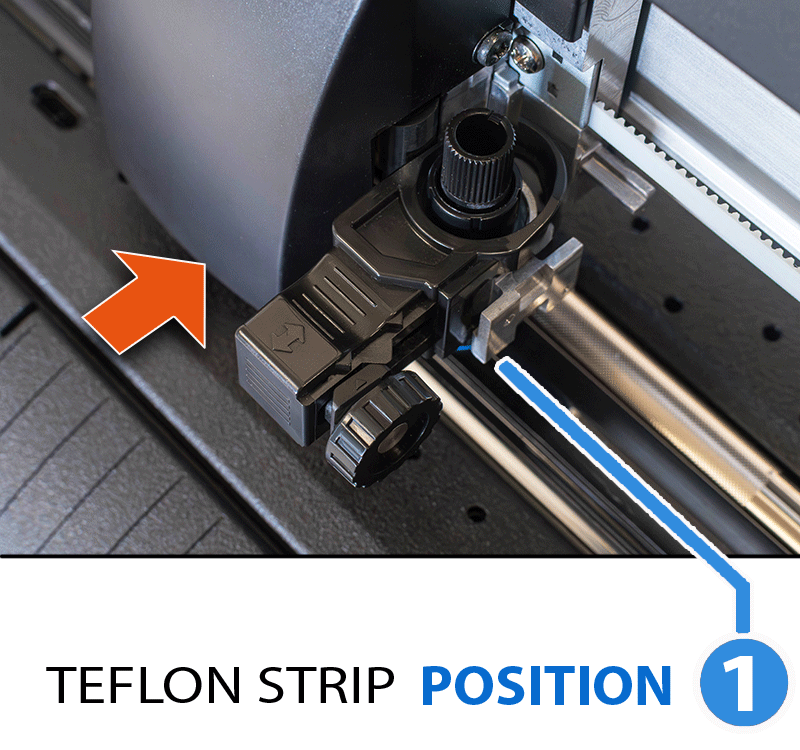

Contour & Die Cutting

Dedicated tool positions for contour cutting and die cutting help extend the life of both the cutting blades and cutting strip. By separating these operations, users can minimize unnecessary wear while efficiently producing decals, labels, and graphics.

This capability is especially beneficial when working with cardstock and other materials where finished designs need to be cut completely through the media and easily popped out, delivering clean, professional results.

Market Applications

Expand your Capabilities with the Highly Versatile CE8000-ASF Series



The CE8000-ASF is suitable for the post-production of pre-printed materials created in small and medium productions to develop products such as:



  • Business Cards,
  • Labels and Decals
  • Thermal Transfer for Apparel,
  • POS Displays and Danglers
  • Custom Designed Retail Packaging
  • Decorative Gift Boxes

Materials & Substrates

The CE8000-ASF also is capable of cutting a wide variety of materials and substrates including:



  • Paper

  • Card Stock

  • Adhesive Vinyl

  • Synthetic Vinyl

  • PET Film

  • Mylar Film

  • Lexan Film

  • Holographic Paper

Graphtec CE8000-ASF Applications banner

Cutting Different Media with the CE8000-ASF

Cutting Business Cards

Cutting Synthetic Stock



Cutting Laminated Stock



Cutting & Scoring Card Stock



Cutting Holographic Prism Film Adhesive Stock



Prepping for World Cup 2026 - One project at a time with the Graphtec CE8000-ASF

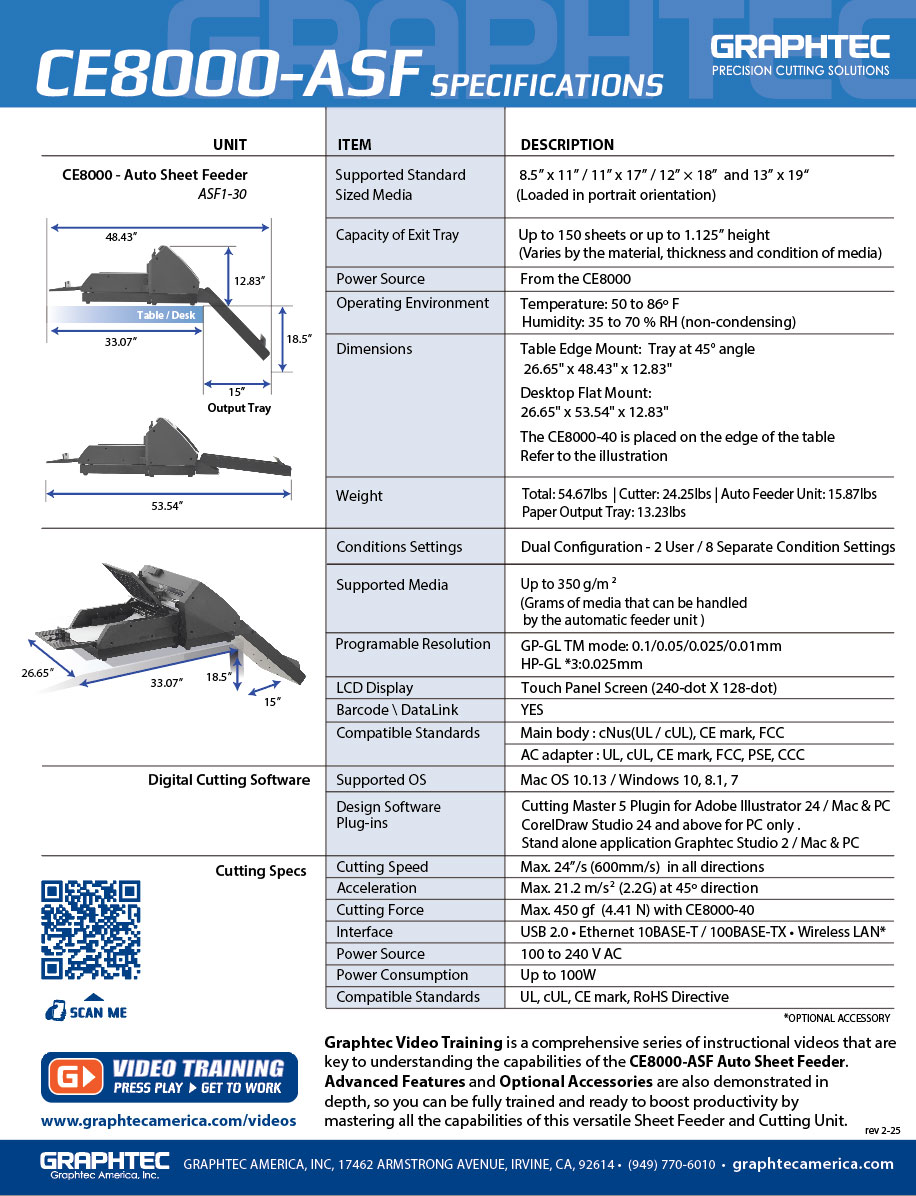

Specifications

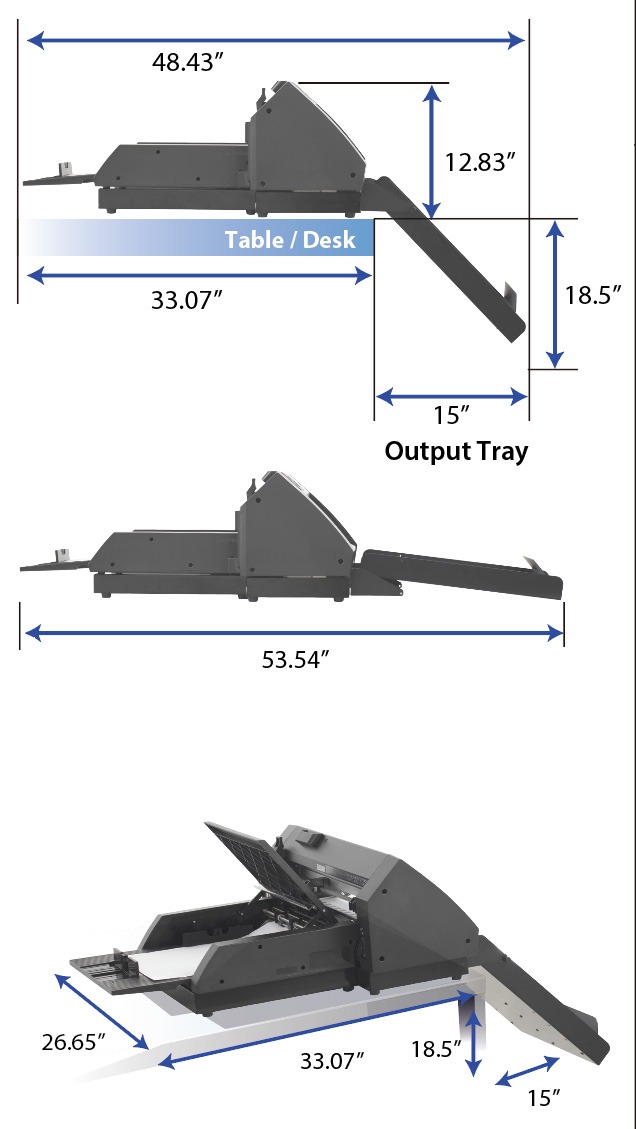

Graphtec CE8000-ASF-Dimensions
Item
Supported Standard Sized Media
Capacity of exit tray
Power source
Operating environment
Dimensions
Dimensions
Dimensions
Weight
Conditions settings
Suported media
Programable Resolution
LCD display
Bardoce/datalink
Compatible standards
Compatible standards
Description
.5” x 11” / 11” x 17” / 12” × 18” and 13” x 19“ (Loaded in portrait orientation
Up to 150 sheets or up to 1.125” height (Varies by the material, thickness and condition of media)
From the CE8000
Temperature: 50 to 86º F Humidity: 35 to 70 % RH (non-condensing
Table Edge Mount: Tray at 45° angle 26.65" x 48.43" x 12.83"
Desktop Flat Mount: 26.65" x 53.54" x 12.83"
The CE8000-40 is placed on the edge of the table Refer to the illustration
Total: 54.67lbs | Cutter: 24.25lbs | Auto Feeder Unit: 15.87lbs Paper Output Tray: 13.23lbs
Dual Conguration - 2 User / 8 Separate Condition Settings
Up to 350 g/m 2 (Grams of media that can be handled by the automatic feeder unit )
GP-GL TM mode: 0.1/0.05/0.025/0.01mm HP-GL *3:0.025mm
Touch Panel Screen (240-dot X 128-dot)
YES
Main body : cNus(UL / cUL), CE mark, FCC
AC adapter : UL, cUL, CE mark, FCC, PSE, CCC

Digital Cutting Software

Item
Support OS
Design software plug-ins
Description
Mac OS 10.13 / Windows 10, 8.1, 7
Cutting Master 5 Plugin for Adobe Illustrator 24 / Mac & PC CorelDraw Studio 24 and above for PC only . Stand alone application Graphtec Studio 2 / Mac & PC (Registration Required)

Cutting Specs

Item
Cutting speed
Acceleration
Cutting force
Interface
Power source
Power consumption
Compatible standard
Description
Max. 24”/s (600mm/s) in all directions
Max. 21.2 m/s (2.2G) at 45º direction
Max. 450 gf (4.41 N) with CE8000-40
USB 2.0 • Ethernet 10BASE-T / 100BASE-TX • Wireless LAN*
100 to 240 V AC
Up to 100W
UL, cUL, CE mark, RoHS Directive *
Graphtec CE8000-ASF Warranty banner

Brochures

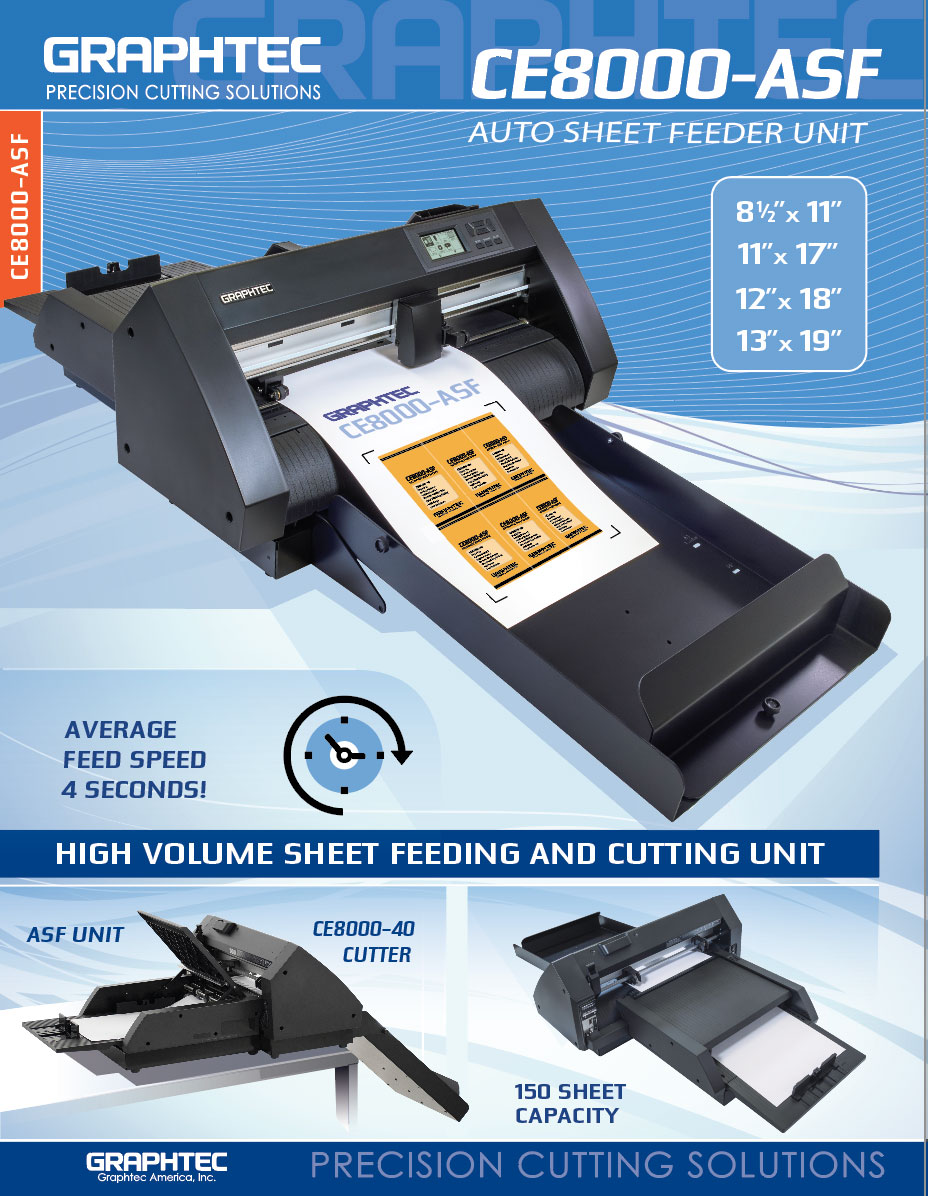

Graphtec CE8000-ASF-Brochure

CE8000-ASF Brochure

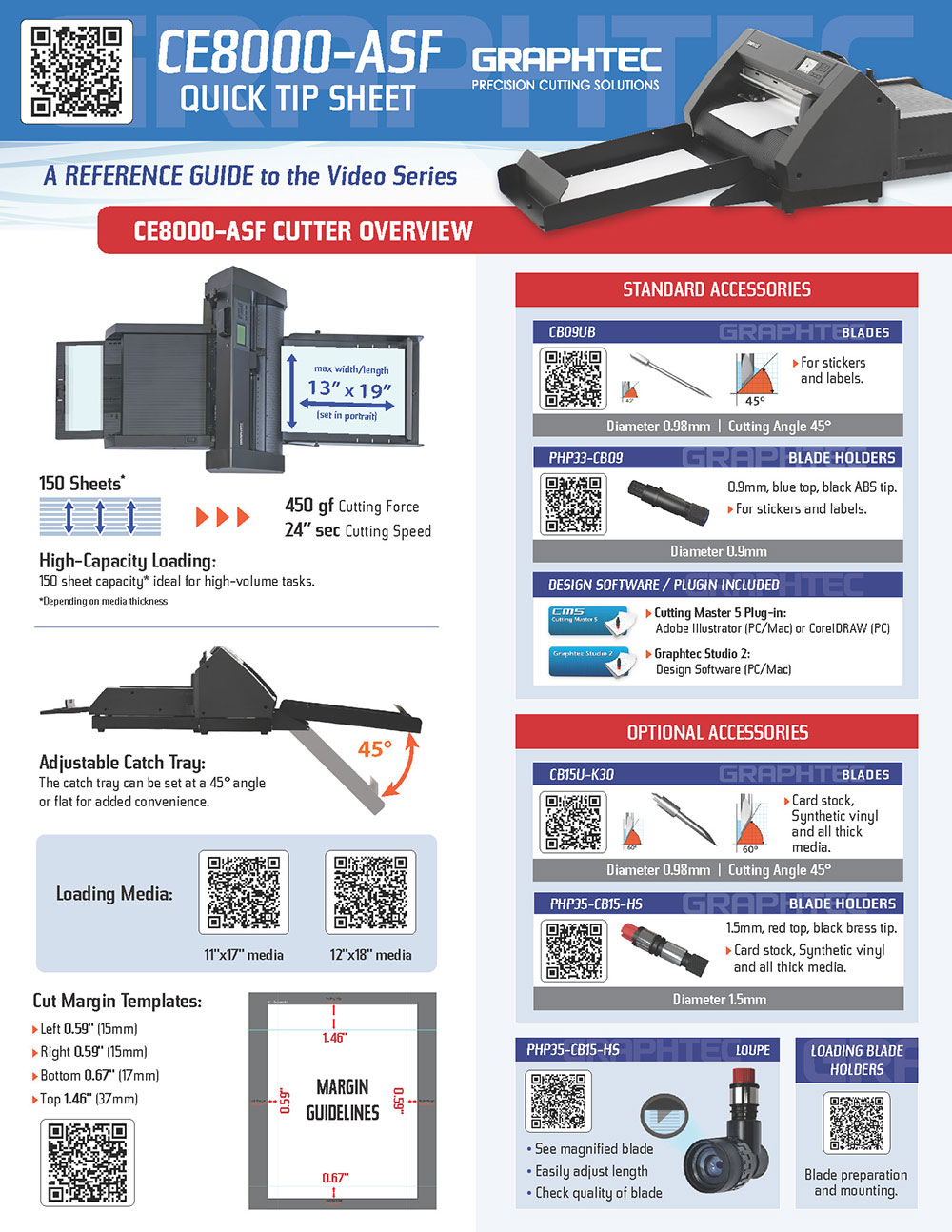

CE8000-ASF-Quick-Tip-Sheet-English

CE8000-ASF Quick Tip Sheet English

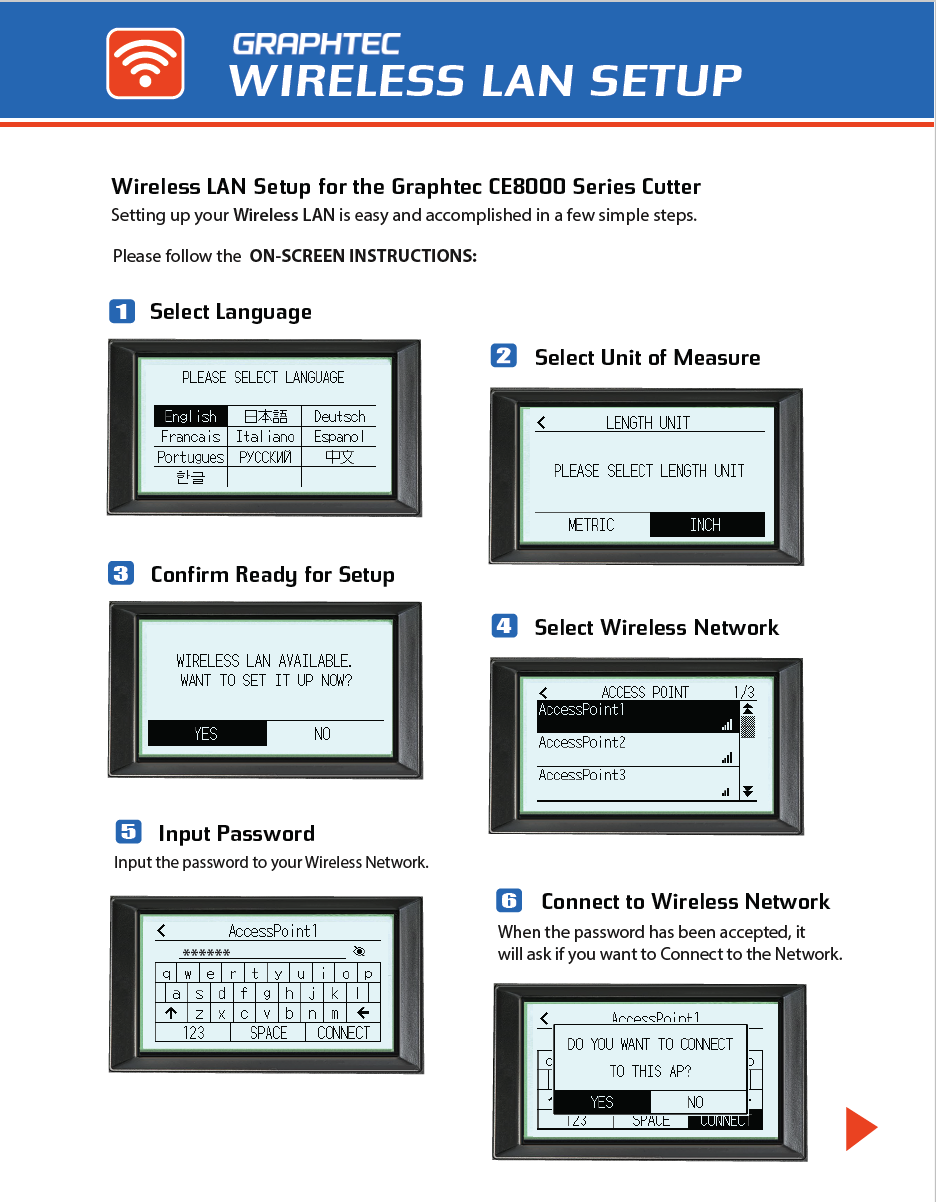

CE8000 Wi-Fi brochure
