NOT READING MARKS



It is rare that an Advanced Registration Mark System (ARMS) is defective, before calling tech support please isolate the cutter(sensor) by performing an ARMS test: necessary tools needed will be the Graphtec plotting pen, or blade if prints are on vinyl, PDF FILES: ARMS test_type 1 (82 KB) or ARMS test_type 2 (82 KB) (this can be printed on a letter size bond paper of desktop printer).

If it fails, please reset the cutter back to factory in step-2 below and try again.

IMPORTANT: If using 3rd party software like Onyx or Flexi Sign, etc.  Please make sure the software is recent enough to include the driver for your model, if the ARMS test works contact Tech Support of the software being used to confirm proper workflow as Graphtec can’t help with this.  Or try a small print and cut job from Cutting Master out of Adobe or Corel, if successful contact then your software manufacturer for support.

Your sensor (cutter) works fine, continue 4-steps below.


STEP 1: NOT ENOUGH SPACE AROUND THE IMAGE WHEN LOADING PRINT JOB TO THE CUTTER



SOLUTION:

Making sure you have the following spacing around the image when loading print on the cutter.  If not enough spacing from push roller to mark, expand mode can be enabled to widen the cut area.

FC8600 / FC8000 SPACING RULES   >>  CLICK TO ENLARGE



CE6000 PLUS / CE6000 SPACING RULES  >>  CLICK TO ENLARGE



STEP 2: INCORRECT CONFIGURATION OF MENU OPTIONS

Your print & cut is processed and controlled by software, so there is no need to modify or enable any option in the cutters ARMS menu.  If settings are modified by accident it can cause misreading, offset, errors.



SOLUTION:



STEP 3 - WITH GLOSSY MEDIA/FINISH, THE CUTTER MIGHT DISPLAY ERROR MESSAGES



SOLUTION:

Enable the ISM mode to intensify the resolution of the registration mark sensor to read marks on hard to detect media, colored media, or reflective media.  OFF by default, to print and cut on high intensity reflective turn-on ISM mode and perform the sensor level adjustment as well.

Click  >>  how to set speed of the registration mark scan (normal/ISM)

    Download pdf version  >> (85 KB)

Click  >>  how to adjust the sensor level

    Download pdf version  >>  (57 KB)


STEP 4 - ERROR MESSAGE WHILE ATTEMPTING TO SCAN

Off scale means that the data or file differs in size from actual print or file is corrupt.

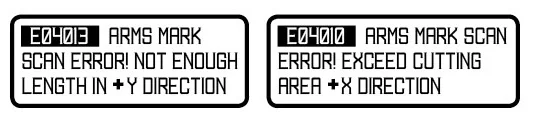

Print and Cut Error Messages.jpg


SOLUTION:



A) Make sure the print is loaded in the same orientation as the cut preview of the software, when using Cutting Master plug in is usually right side up.

B) Check push roller regarding spacing if error displayed is regarding Y direction, go back and check Step 1 Spacing Rules

C) if X-direction related error message please check the page length setting in the cutter: MENU, Page Length, set to 1048in.

Note: both b and c have to do with a mismatch in scale (size difference between print and file), it is important to know this detail.  Offscale error, or the error codes above are treated the same.

Note: when receiving these error codes, or scaling errors also check the Command sSetting on the plotter: MENU, IF, Command, HPGL or GPGL. All Graphtec software works on GPGL.  FlexiSign for example uses HPGL.  Please set accordingly.

D) If the issue remains and other files cut fine recreate the registration marks on the file and print again - when files are exported or saved to be opened and processed on a different computer, the registration mark layers can become corrupted.  Or for other reasons files can become corrupted.

     Click   >>   If problem remains, please contact our Tech Support Team
