The FCX2000 Series is the ultimate solution for package prototyping and short production runs of rigid materials without the use of a cutting die. With Graphtec’s medium to large flatbed cutting plotters, you have the right tool for contour cutting without requiring a die. Reduce media waste and processing time with included, dedicated software.Users are empowered to create custom orders at low cost with short delivery times. Redesigned Y bar and cutting table deliver high precision cutting and creasing. New dedicated design software and plug-ins provide all of the tools necessary to create elegant, professional products.
Using offline USB operation, even the most novice user is set to operate directly from the machine - without the use of a computer. USB operation enables operators of all skill levels to process various types of media for cutting. Having a designer create the plot file, it can be passed to users of any experience level to produce. Simply insert the USB and select the file from the intuitive new 3.7 inch Graphic LCD screen. The corresponding cutting conditions are automatically applied and the job is produced. Similarly, barcodes can be generated for print and cut applications. Cutting data is automatically selected from USB flash memory by scanning the generated barcode printed on the media to preform contour cutting. This reduces the potential for mistakes by the operator.
The FCX2000 Series is equipped with Graphtec’s renowned ARMS (Advanced Registration Mark Sensing system) technology that allows users to accurately contour cut pre-printed graphics with ease. Auto-scanning of four point registration marks compensate for distortion in both X & Y directi
ons to ensure precise cutting. Version 6.0 is packed with high productivity features such as ARMS Copy, One Point Compensation, Scan Start Position, and Expanded Cutting Area capability.
Graphtec’s Cutting Master 4 plug-in for Adobe Illustrator and CorelDRAW is used to send cut designs, as well as control parameters of the plotter. This is where registration marks can be added, large designs tiled; matrix copies created, and weed lines added. Graphtec Pro Studio design software offers an array of design tools and extensive file format compatibility – including EPS, CMX and PDF. In addition, Graphtec Pro Studio PLUS is an upgrade to unlock advanced features such as true shape nesting, arranging the cut order of objects, and rhinestoning.
Dual head design delivers 500G and 1000G of force at speeds up to 400mm/s. Process materials thick or thin – including: rubylith, static cling film, vinyl, rubber sandblast, diamond grade reflective, chipboard, E flute*, and more. Three table sizes of 36”x 24”, 36” x 48”, and 36”x 72” are available utilizing enhanced vacuum suction media hold down.
Interface: Ethernet, USB2.0 and Serial RS-232C | Intuitive 3.7” LCD Screen | Digital Servo Motor USB Flash Memory for Offline Operation | Win & Mac Compatible
FCX2000-60 (VC) 36”x24”
FCX2000-120 (VC) 36”x47.2”
FCX2000-180 (VC) 36”x70.8”
Table size in the Line-up
3 different table size with choice of vacuum suction or electrostatic media-hold down methods depending on application.

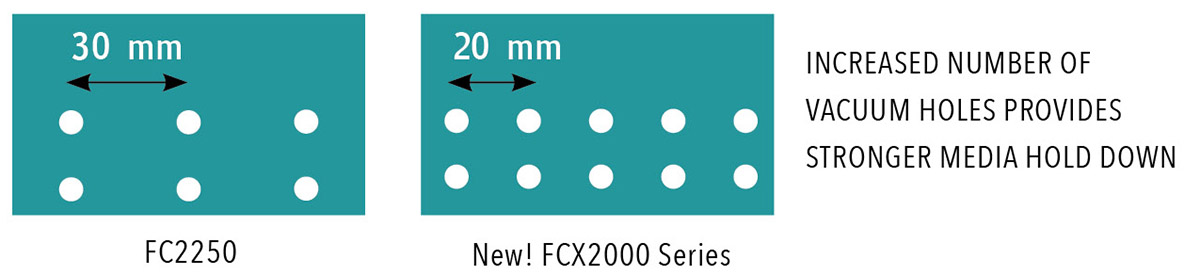

Stronger Media Hold-Down
Distance between the holes has been improved from 30 mm on FC2250 Series to 20 mm on FCX2000 Series, as a result, FCX2000 Series provides stronger suction power to hold heavier and thicker medias down.

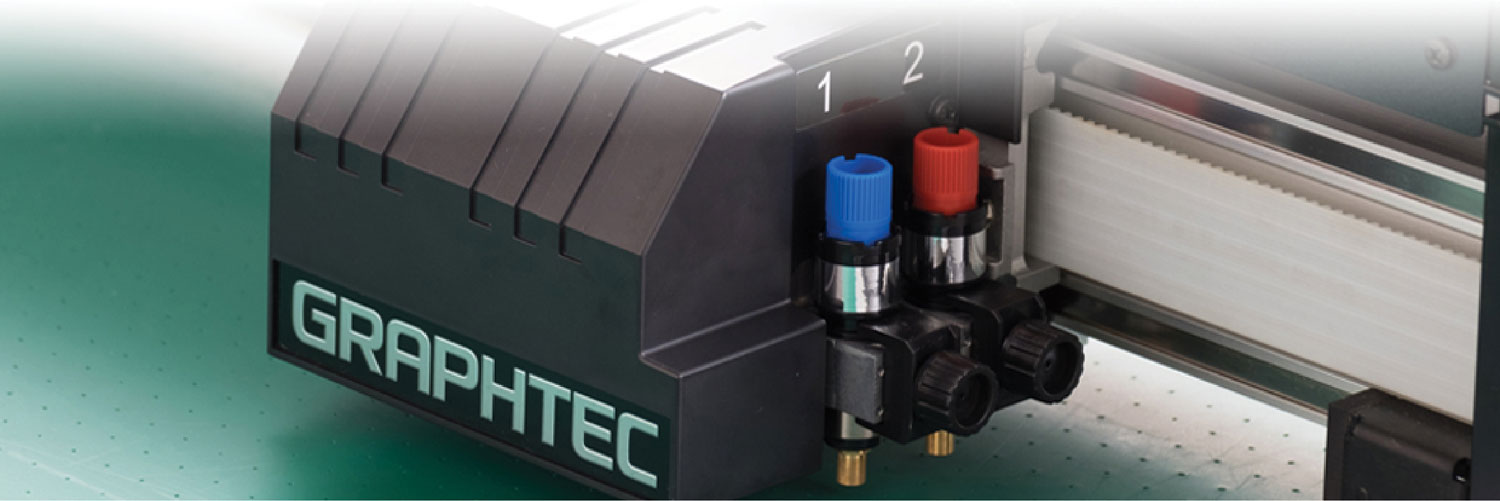

Dual tool holder with 500 gf on tool 1 and 1,000 gf on tool 2
Provided tools suitable for many applications
The FCX2000 series has 2 tool holder in the carriage.
Using 2 different kind of tool allows to do a different job
without exchanging a tool at the same time. it can increase work efficiency.
Tool Holders & Cutting/Creasing Tools
Dual Tool Holders which can hold a cutting blade and creasing tool — to produce creases/folds and cuts on the same run.
Intuitive operation with 3.7" LCD
Onboard control and settings are simplified using the equipped 3.7” LCD (240x128 dots) and tactile control panel.
Image 1: Improved and increased Y-bar rigidity
For precision cutting accuracy
Image 2: Safety enhancement
A new, dedicated emergency STOP switch is at the ready. Supports a dedicated stop switch for stopping the machine when emergency case is occurred.
Image 3: Roll-media stocker
The FCX2000 comes equipped with a mounted roll-media stocker. Supports media width up to 37.4” and weight up to 11 lbs.
Offline operation supported by use of USB flash memory
Cut and plot data is created with Cutting Master 4 or Graphtec Pro Studio. That saved data may be transferred to a USB flash memory and the cut plot data file can be selected from the USB on the FCX2000 using its menu operations. This simplified work-flow enables users to operate without being connected to the computer.
Data management using bar-code function with USB flash memory
When performing contour cutting, also known as “Print & Cut”, the cutting data is automatically selected from the prepared USB flash memory. The FCX2000 scans the bar code printed on the media then automatically performs the contour cutting job. This emerging method helps to prevent operator error of using incorrect data - thus improving workflow efficiency.
Expanded Contour Cutting Area
This included function expands the print and cut area to include objects outside of the registration marks! Production efficiency is enhanced and media waste is reduced.
Supports Standard Crop Marks
Contour cutting pre-printed media is also possible using “standard crop marks.” This operation is available with the included Cutting Master 4 plug-in workflow.
Reversed Color Registration Marks
Registraiton marks are detectable when there is sufficient contrast against the mark and its background. Ultra glossy and reflective media offer challenges for accurate registration mark detection. With this reversed color output, the sufficient contrast is brought back for the ability to contour cut pre-printed ultra glossy and reflecting sheeting.
|Type of media||Thickness||Support cutting blade||FCX2000-60VC||FCX2000-120VC||FCX2000-180VC||FCX2000-120ES|
|Self-adhesive marking film
(vinyl, fluorescent, reflective)
|up to 0.25 mm||CB09UB||〇||〇||〇||〇|
(pattern paper, oil board)
|up to 0.5 mm||CB15U, CB15U-K30||〇||〇||〇||〇|
|up to 1.0 mm||CB30UC||〇||〇||〇||〇|
|Compressed foam sheet||up to 0.8 mm||CB15U-K30||〇||〇||〇||-|
|Sandblast resist rubber||up to 1.0 mm||CB15U-K20||〇||〇||〇||〇|
|Cardboard (F/G flute)||up to 1.1 mm||CB30UC||〇||〇||〇||〇|
| Clear sheet for plastic boxes
||up to 0.5 mm||CB15U||〇||〇||〇||〇|
|up to 1.0 mm||CB15U-K30||〇||〇||〇||-|
|High-intensity reflective film||up to 0.5 mm||CB15UA||〇||〇||〇||-|
|up to 1.0 mm||CB15UA-K30||〇||〇||〇||-|
|Configuration||Digital servo system, Flatbed|
|Media hold-down method||Vacuum suction|
|Effective cutting area||24 in x 36 in (610mm x 920mm)||47.2 in x 36 in (1,200mm x 920mm)||70.8 in x 36 in (1,800mm x 920mm|
|Mountable media (Y-axis)||3 ft 1.4 in (950mm)|
|Roll media support||Roll media stocker (manual feeding), supported media; width: up to 950 mm, weight: up to 5 kg|
|Maximum cutting speed||1 ft 3.7 inch/sec (400 mm/sec) (1 to 40 cm/s in 16 steps), in all directions|
|Cutting force||Tool 1: Max. 4.9 N (500 gf), Tool 2: Max. 9.8 N (1 kgf)|
|Cutting force settings||Tool 1: in 40 steps, Tool 2: in 40 steps|
|Minimum character size||Approx. 10 mm square (varies with character font and media)|
|Programmable resolution||GP-GL mode: 0.1/0.05/0.025/0.01 mm, HP-GL™ : 0.025 mm|
|Distance accuracy||Max. 0.1% of the distance moved or 0.1 mm, whichever is larger (in plotting mode) (*2)|
|Perpendicularity||Max 0.5 mm / 900 mm (in plotting mode)|
|Repeatability||Max 0.1 mm (excluding contraction of media, in plotting/cutting mode) (*2)|
|Standard interfaces||RS-232C, USB2.0 (High-Speed), and Ethernet (10BASE-T/100BASE-TX)|
|Command sets||GP-GL and HP-GL™ emulation (set by menu, or selects automatically by received data)|
|Number of tools||Two tools|
|Cutting blade, pen, and tool types||Cutting blade (supersteel), Pens (Water-based fiber-tip pen, oil-based ballpoint pen), and Creasing/scoring tool|
|Others||ARMS, Reverse side Cutting/Creasing using ARMS, ARMS Copy function, Creasing, Cutting/creasing in multiple passes|
|Power source||100 to 240 VAC, 50/60 Hz (Auto switching)|
|Power consumption||Max. 140 VA|
|Pumps||110V has 1.5 horse power, 220V has 2.5 horse power|
|Operating environment||Temperature: +10 to +35 ºC, Humidity: 35 to 75% RH (non-condensing)|
|Guaranteed accuracy environment||Temperature: +16 to +32 ºC, Humidity: 35% to 70% RH (non-condensing)|
[W x D x H] (Approx.)
W 52.9 x D 55.4 x H 36.6 in
1344 x 1409 x 930 mm (Including stand)
W 76.1 x D 55.4 x H 36.6 in
1934 x 1409 x 930 mm (Including stand)
W 99.7 x D 55.4 x H 36.6 in
2534 x 1409 x 930 mm (Including stand)
|Weight (Approx.)||167.5 lb (Including stand) (*3)||218.2 lb (Including stand) (*3)||225.7 lb (Including stand) (*3)|
|Compatible OS (*4)||Windows 10 / 8.1 / 8 / 7, Mac OS X 10.7 to 10.11 / macOS 10.12|
|Included software (*4) (*5)||Cutting Master 4, Graphtec Pro Studio, Graphtec Studio(for Mac)|
|Safety||UL60950-1/cUL, CE marking (Low voltage and EMC)|
*1. Available in a limited region. Please contact your local representative of Graphtec.
*2. When operated with Graphtec specified media and conditions.
*3. Pump (blower) for vacuum suction media hold-down system is not included.
*4. For more information about Windows and Macintosh compatibility, please check the website or contact your local representative of Graphtec.
*5. The software can be used by downloading from Graphtec website.
Main body is packed in a cardboard box, and then it is loaded on the pallet. Leg with a caster for the stand is packed in a cardboard box. It is not loaded on the pallet. The bar for connecting the right and left legs of the stand is packed to the main body.
|Model name||FCX2000-60VC||FCX2000-120VC||FCX2000-180VC||Stand FCX2000 Series|
Dimensions (W x D x H) inches
65.4 x 50 x 18.9
65.4 x 73.3 x 18.9
65.4 x 100 x 33
63 x 32.1 x 12.4
|276 lbs||380 lbs||668 lbs||59.4 lbs|
|Cutting blade holder||PHP33-CB09N-HS||For CB09U series blade|
|PHP33-CB15N-HS||For CB15U series blade|
|PHP35-CB09-HS||For CB09U series blade|
|PHP35-CB15-HS||For CB15U series blade|
|PHP34-CB30-HS||For CB30UC / PM-CB-001 cutting blade|
|Cutting blade||CB09UB||0.9mm dia. 45º, Supersteel||Self-adhesive marking film (vinyl, fluorescent, refractive), thin sheet, up to 0.25 mm thick.|
|CB09UB-K60||0.9mm dia. 30º, Supersteel||Thinner film (Tint film), 0.03 mm to 0.25 mm thick.|
|CB15U||1.5mm dia. 45º, Supersteel||Rigid or thick film or sheet, heavy paper (pattern paper, oil board), 0.25 mm to 0.5 mm thick.|
|CB15U-K30||1.5mm dia. 60º, Supersteel (Japan 30º)||Rigid or thick sheet, 0.25 mm to 0.5 mm thick.
And also small detailed characters on marking film (up to 0.25 mm thick).
|CB15UA||1.5mm dia. 45º, Supersteel||High-intensity reflective film or harder film, up to 0.5 mm thick.|
|CB15UA-K30||1.5mm dia. 60º, Supersteel (Japan 30º)||High-intensity reflective film or harder film, up to 1.0 mm thick.|
|CB30UC-1||3.0mm dia. 45º, Supersteel||Rigid or thicker sheet (cardboard), up to 1.2 mm thick.|
|PM-CB-001||3.0mm dia. 60º, Supersteel||Rigid or thicker sheet (soft plastic, rubber, cardboard), 1.0 mm to 2.0 mm thick.|
|Loupe||PM-CT-001||Checking blade length, for PHP33 and PHP35 series|
|Creasing / Scoring tool||CP-001||Stick type, for heavy paper|
|CP-002||Roller type (R0.2), for heavy paper|
|CP-003||Roller type (R0.6), for cardboard|
|PM-CT-002||Ball on tip of stick, for curve on heavy paper|
|Fiber-tip pen, pen holder||KF700-BK||Water-based fiber-tip pen, Black|
|KF700-RD||Water-based fiber-tip pen, Red|
|KF700-BL||Water-based fiber-tip pen, Blue|
|PHP31-FIBER||Pen holder for KF700 series pen|
|Ballpoint pen, pen holder||KB700-BK||Oil-based ballpoint pen, Black|
|PHP34-BALL||Pen holder for the KB700-BK pen|
|CM-0003-R1A||Adhesive sheet, supplying in roll, size 545 mm x 20 m|
|CM-0004||Cling mat for film based materials, size 435 x 610 mm|
|CM-0005||Cling mat for paper based materials, size 435 x 610 mm|
FOR VINYL MEDIA
FOR VINYL MEDIA
(USA 30° Japan 60°)
FOR THICK MEDIA
FOR THICKER MEDIA OR SMALL CHARACTER
CB15U-K30 (USA 60° Japan 30°)
FOR HIGH INTENSITY REFLECTIVE FILM
FOR HIGH INTENSITY REFLECTIVE FILM
CB15U-K30 (USA 60° Japan 30°)
FOR RIGID MEDIA CORRUGATED BOARD
FOR RIGID MEDIA, SOFT PLASTIC OR RUBBER
PM-CB-001 (USA 60° Japan 30°)
OIL-BASED BALLPOINT PEN
KF700-BK, KF700-RD, KF700-BL
NEW! PEN TYPE, FOR CURVES ON HEAVY PAPER
STICK TYPE, FOR HEAVY PAPER
ROLLER TYPE, FOR CARDBOARD
ROLLER TYPE, FOR CORRUGATED BOARD
