Wireless

WIRELESS DATA LOGGERS

GL100-WL-TH

Wireless Data Logger with Temp/Humidity Sensor

(Range: -20°C to 85°C)

GL100 WL-LXUV

Wireless Light/UV Data Logger

(Range:  0 to 200k lux

0 to 30mW/cm²)


GL100-WL-CO2

Wireless CO2 Data Logger

(Range:  0 to 9,999ppm)

GL100-WL-3AT

Wireless 3-axis Vibration Data Logger

(Range: ±2G, ±5G, ±10G)


WIRELESS POWER / CURRENT DATA LOGGERS

GL100-WL-DPA-AC50A

Wireless Current/Power Data Logger (Range:  Max 50A, 90 to 264V, pf 0.3-1.0)

GL100-WL-DPA-AC100A

Wireless Current/Power Data Logger

(Range:  Max 100A, 90 to 264V, pf 0.3-1.0)

GL100-WL-DPA-AC200A

Wireless Current/Power Data Logger

(Range:  Max 200A, 90-264V, pf 0.3-1.0)


WIRELESS MULTI-INPUT DATA LOGGERS (MAX. 4-CHANNELS)

GL100-WL-4VT

Wireless 4-Ch Voltage (0-50V) and Temp (T/C K or T) Data Logger

GL100-WL-4TSR-GS103AT

Wireless 4-Ch Thermistor Data Logger with normal A-Type Thermistors

GL100-WL-4TSR-GS103JT

Wireless 4-Ch Thermistor Data Logger with ultra-thin J-Type Thermistors


WIRELESS GL100 COMBINED DUAL PORT SOLUTIONS

GL100-WL-CO2-DPA-LXUV

Wireless Dual Port Data Logger with Carbon Dioxide and Light/UV Sensors

GL100-WL-TH-DPA-CO2

Wireless Dual Port Data Logger with Temp/Humidity and Carbon Dioxide Sensors

GL100-WL-LXUV-DPA-TH

Wireless Dual Port Data Logger with Temp/Humidity and Carbon Dioxide Sensors

Non-Wireless

NON-WIRELESS DATA LOGGERS

GL100-N-TH

Non-wireless Temp/Humidity Data Logger

(Range: -20°C to 85°C)

GL100-N-LXUV

Non-Wireless Light/UV Data Logger

(Range:  0 to 200k lux,

0-30mW/cm²)

GL100-N-CO2

Non-Wireless Carbon Dioxide Data Logger

(0-9,999 ppm)

GL100-N-3AT

Non-Wireless 3-axis Vibration Data Logger

(Range: ±2G, ±5G, ±10G)


GL100-N-DPA-AC50A

Non-wireless Current/Power Data Logger (Range:  Max 50A, 90- 264V, pf 0.3-1.0)

GL100-N-DPA-AC100A

Non-wireless Current/Power Data Logger (Range:  Max 100A, 90- 264V, pf 0.3-1.0)

GL100-N-DPA-AC200A

Non-wireless Current/Power Data Logger (Range:  Max 200A, 90-264V, pf 0.3-1.0)


NON-WIRELESS MULTI-INPUT DATA LOGGERS (4-CHS)

GL100-N-4VT

Non-Wireless 4-Ch Voltage (0-50V) and Temp (T/C K or T) Data Logger

GL100-N-4TSR-GS103AT

Non-Wireless 4-Ch Thermistor Data Logger with normal A-Type Thermistor (-40 to 105 ºC)

GL100-N-4TSR-GS103JT

Non-Wireless 4-Ch Thermistor Data Logger with ultra-thin J-type Thermistor  (-40 to 120 ºC)


NON-WIRELESS GL100 COMBINED DUAL PORT SOLUTIONS

GL100-N-CO2-DPA-LXUV

Non-Wireless Dual Port Data Logger with CO2 and Light/UV Sensors

GL100-N-TH-DPA-CO2

Non-Wireless Dual Port Data Logger with Temp/Humidity and CO2 Sensors

GL100-N-LXUV-DPA-TH

Non-Wireless Dual Port Data Logger with Temp/Humidity and Carbon Dioxide Sensors

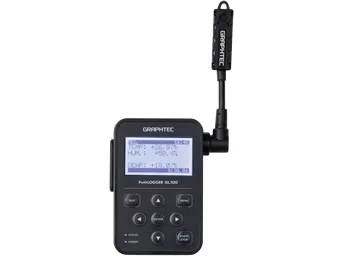

The GL100 is a new compact handheld data logger. Its body with universal input allows users to switch sensors and terminals for measuring various signals. The main body dimension is a slim 2.6″ wide x 3.93″ tall x 1.06″ thick (66mm x 100mm x 27mm) long, and weighs just over a quarter pound (130g).

  • Powered by two AA batteries (not included) or USB bus power (includs MicroB-A USB cable)

  • Onboard memory of 4.9MB

  • External memory via Micro SD card slot

  • Includes factory wireless LAN on the GL100-WL model.

The display is a back-lit monochrome type with a 128×64 dot resolution display with measured values and settings shown real time. Real-time data can be displayed while you record, and captured data can be displayed on PC using the application software included with the main unit (or downloadable from this site).

GL100-WL/GL100-N Compact Data Logger Key Values:

  • Wireless data logging

  • Up to 10 GL100 can be viewed on the software APS via USB on WLAN

  • Swappable sensors and modules

  • Measurement focused real-time APS software

  • Apps available on iOS and AndroidOS platforms

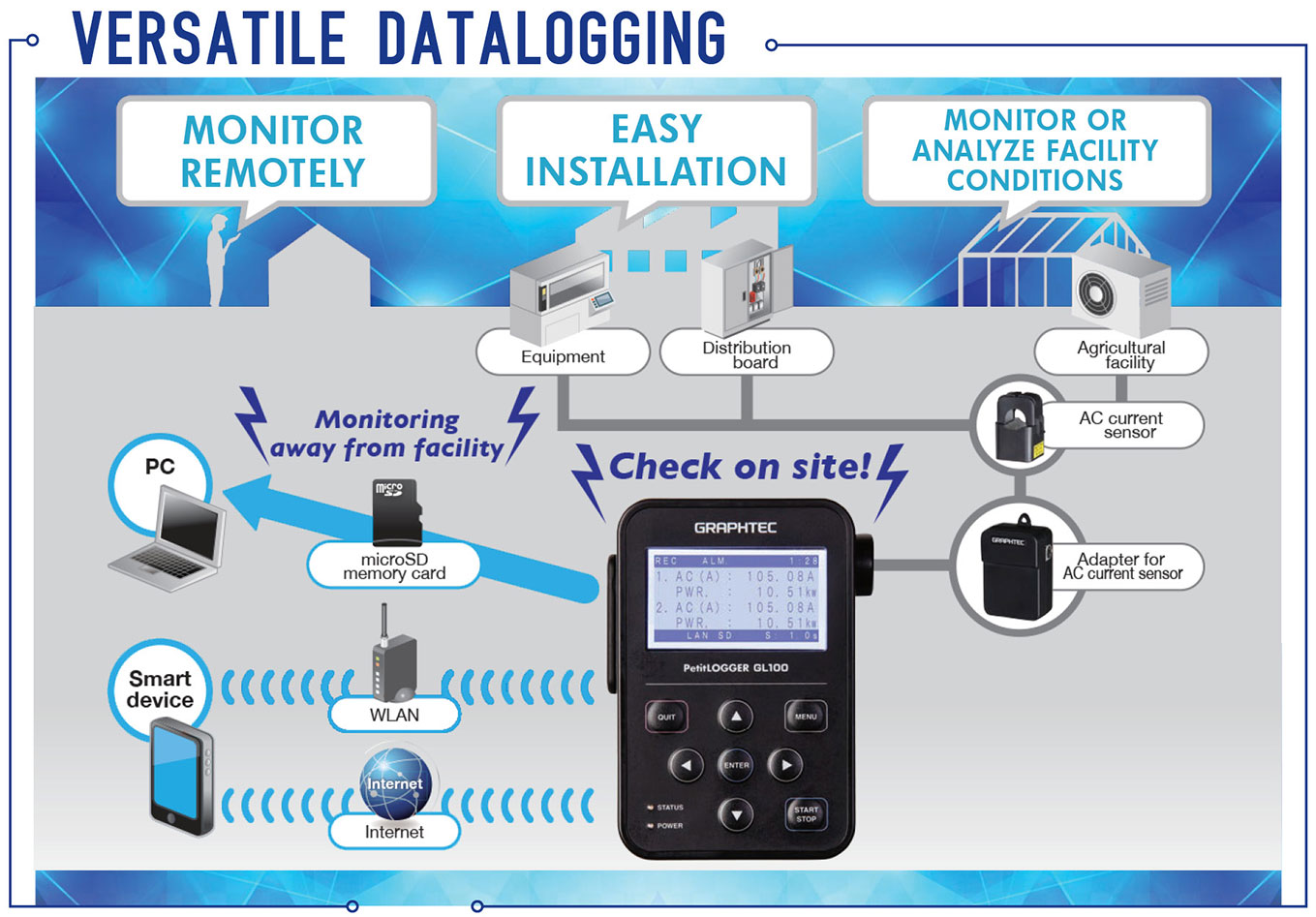

FLEXIBLE INPUT MODULE ALLOWS WIDE RANGE OF MEASUREMENTS

New GS sensors and GS modules in volatile wireless and non-wireless environment have the ability to swap input modules using the GL100.

GL100 uses Wireless LAN (WLAN) IEEE802 standard, and area of use is limited by the Wireless Telegraphy Act in certain regions.


MAIN BODY: GL100-WL w/WLAN, GL100-N wo/ WLAN

MAIN BODY: GL100-WL w/WLAN, GL100-N wo/ WLAN

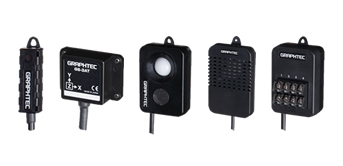

INPUT MODULES: measuring the Temperature, Humidity, Acceleration, Carbon dioxide (CO2), Illuminance, UV, AC current, Voltage

INPUT MODULES: measuring the Temperature, Humidity, Acceleration, Carbon dioxide (CO2), Illuminance, UV, AC current, Voltage

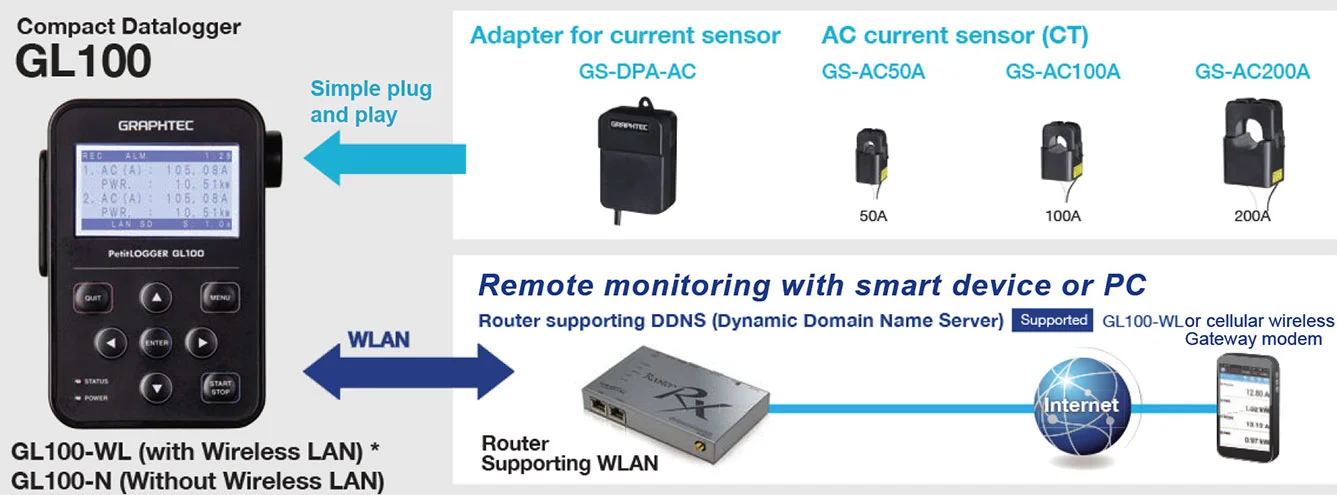

ELECTRICAL POWER USE MEASUREMENT



Compact data logging solution for current and power use of lines up to 264V

Capable of up to 200A measurement

For single phase 3-wire, 2-wire, and 3-phase 3-wire current and power measurement

Selectable power factors

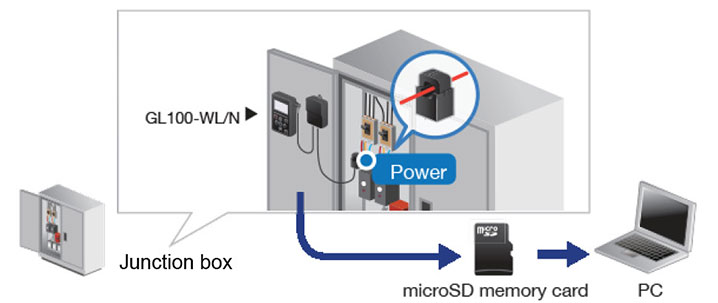

APPLICATION EXAMPLE IN

QUICK INSTALL POWER MONITORING

SOLUTION

COLLECT RECORDED DATA WITH microSD* memory



* microSD memory card is not included. (One data file on microSD memory card is limited up to approx 1.9 GB)  ** When GL100 is driven with AA alkaline batteries, battery life is approximately 6 days (Condition: measuring with AC current sensor, 1 minute sampling interval, saving data into built-in memory, enabling screen saver)

* microSD memory card is not included. (One data file on microSD memory card is limited up to approx 1.9 GB)

** When GL100 is driven with AA alkaline batteries, battery life is approximately 6 days (Condition: measuring with AC current sensor, 1 minute sampling interval, saving data into built-in memory, enabling screen saver)



DATA CAPTURING TIME (sample condition: measuring AC current and power using GS-DPA-AC, 1 minute sampling interval)

Built-in memory (approx. 4.9 MB)  up to 178 days, microSD memory card over 2 years



RECORDING CONDITIONS

Recording destination: internal memory (calculated by 4.9 MB)

Sampling: 30 sec. or 1 min.

Max. recording time = (Max. capacity / Record length) x Sampling interval

Setting Items Models Record length (Byte)

Max. Sampling 30 sec.

Max. Sampling 1 min.
Temp. & Humidity GS-TH 14 127 254
Acceleration & Temp. GS-3AT 12 148 297
4ch, Voltage or Temp GS-4VT 22 81 162
4ch, Temp. (Thermistor) GS-4TSR 38 46 93
Illuminance & UV GS-LXUV 16 111 223
Carbon dioxide (CO2) GS-CO2 6 297 594
AC Current & Power GS-DPA-AC 20 89 178
Temp./Humidity + CO2 GS-TH+GS-CO2 16 111 223
Temp./Humidity + Illuminance/UV GS-TH+GS-LXUV 18 68 137
CO2 + Illuminance/UV GS-CO2+GS-LXUV 26 99 198

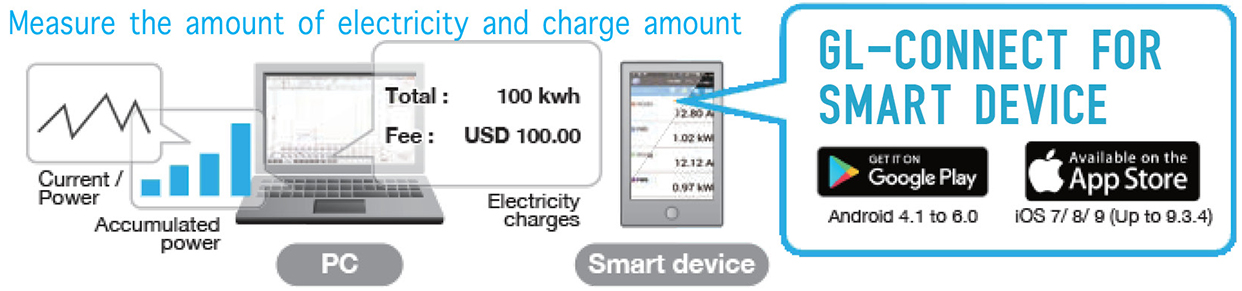

ADDITIONAL/MEASUREMENT TOOL WITH PC OR SMART DEVICE (SOFTWARE INCLUDED)
