FC9000 Series Cutters

OVERVIEW

FEATURES

APPLICATIONS

ACCESSORIES

SPECIFICATIONS

DOWNLOADS

VIDEO TUTORIALS

The Graphtec FC9000 Series is our most advanced and versatile roll-fed cutting plotter yet, delivering exceptional precision, performance, and reliability

Renowned worldwide for its dependable, high-precision cutting capabilities, the FC9000 Series effortlessly handles both printed and unprinted media. Designed to meet the demands of a wide range of industries, it provides an ideal finishing solution for applications such as wide-format signage, apparel, and automotive graphics.

Featuring a newly engineered media feeding system and cutting head, the FC9000 Series delivers even greater cutting accuracy and quality across a broad range of material thicknesses and types—from delicate window tint to heavy-duty, high-intensity reflective films.

Datalink Barcode System

Powered by ARMS 8.0, Graphtec's advanced Datalink Barcode System automates job loading and processing, allowing users to streamline production workflows, minimize manual intervention, and maximize overall efficiency and productivity.

Datalink Barcode System

Streamline your production workflow and reduce the risk of errors with Graphtec's DataLink Barcode System. By using barcode technology, the system automates job selection and processing, saving valuable time and simplifying the handling of multiple cutting tasks with just the press of a button.

DataLink offers flexible compatibility with a wide range of RIP software and printers, as well as Graphtec's bundled software, including Cutting Master and Graphtec Pro Studio.

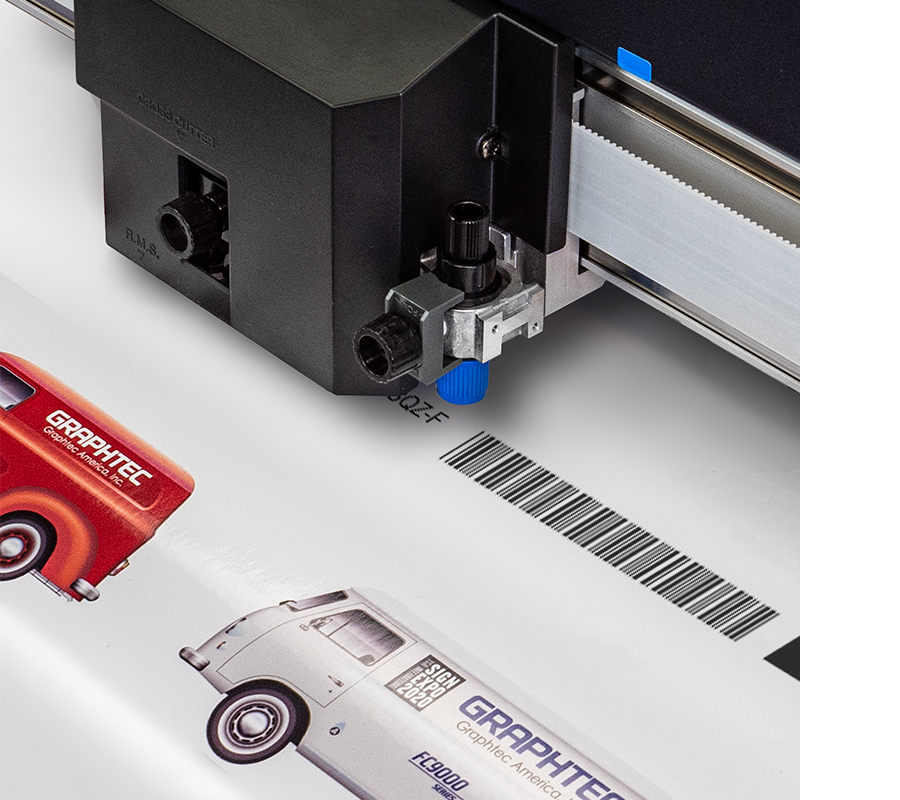

The FC9000 Series automatically reads barcodes to identify the corresponding cutting data stored on a connected PC or USB flash drive. It then retrieves the appropriate file, applies the designated cutting conditions, and initiates the cutting process—all automatically for a seamless, efficient workflow.

Precision Cutting for Printed Media

Graphtec's Advanced Registration Mark Sensing (ARMS) Technology delivers exceptional cutting accuracy on printed media while offering advanced features designed to streamline production and maximize efficiency.

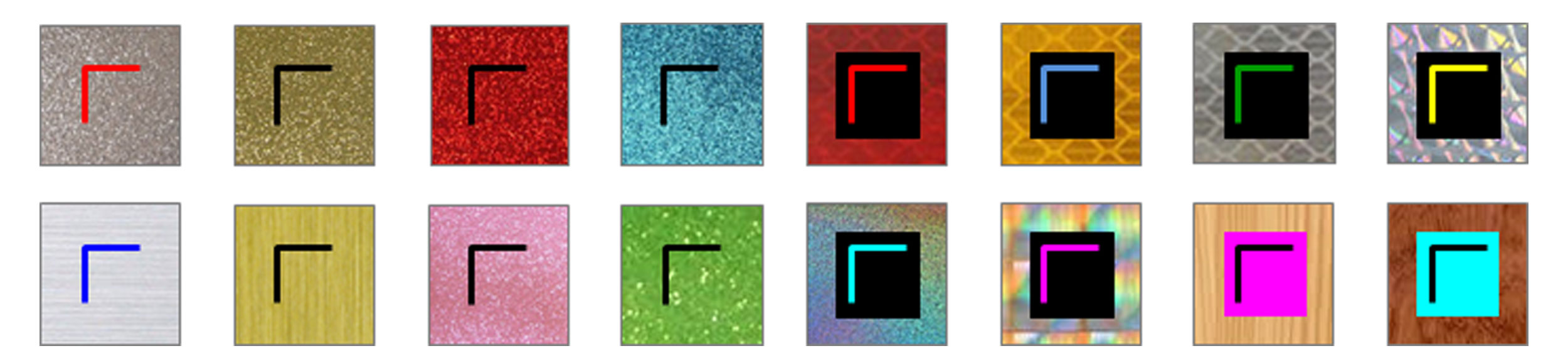

Easily Handles Reflective and Specialty Media

Equipped with a new white LED sensor and an improved registration mark detection algorithm, the FC9000 accurately detects registration marks printed from virtually any printer. It supports a wide variety of media types, including high-gloss, metallic, glitter, and high-intensity reflective materials, ensuring reliable and precise contour cutting across diverse applications.

No Flatbed?

No Problem!

The newly engineered media feeding system significantly enhances cutting performance across both thin and thick materials, providing greater versatility without the need for a flatbed cutter.

Additional push rollers can be installed to improve media stability and cutting precision when working with heavy or rigid materials, such as rubber and diamond-grade, high-intensity reflective films.

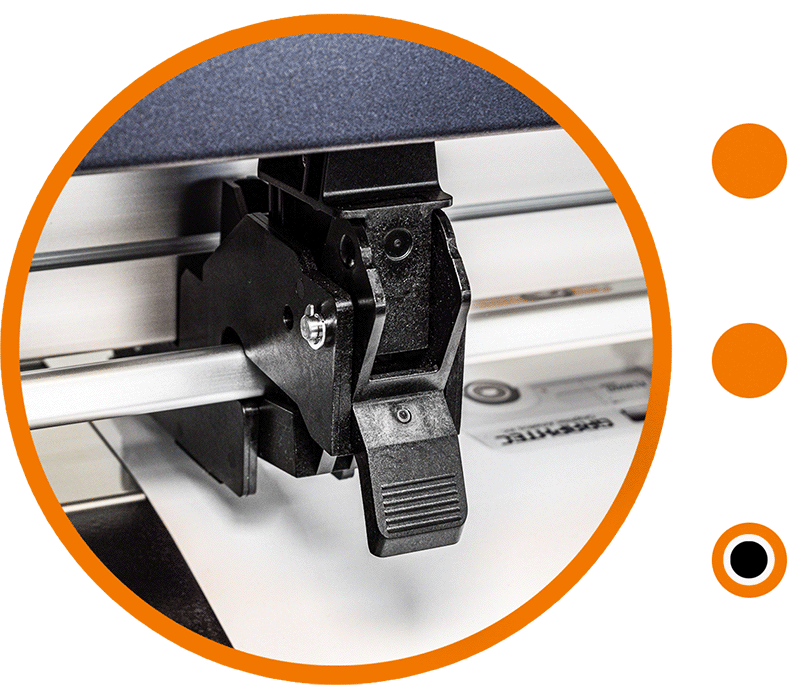

Three adjustable push roller pressure settings provide secure media hold-down while minimizing the risk of leaving unwanted track marks.

Contour & Die Cut with Ease

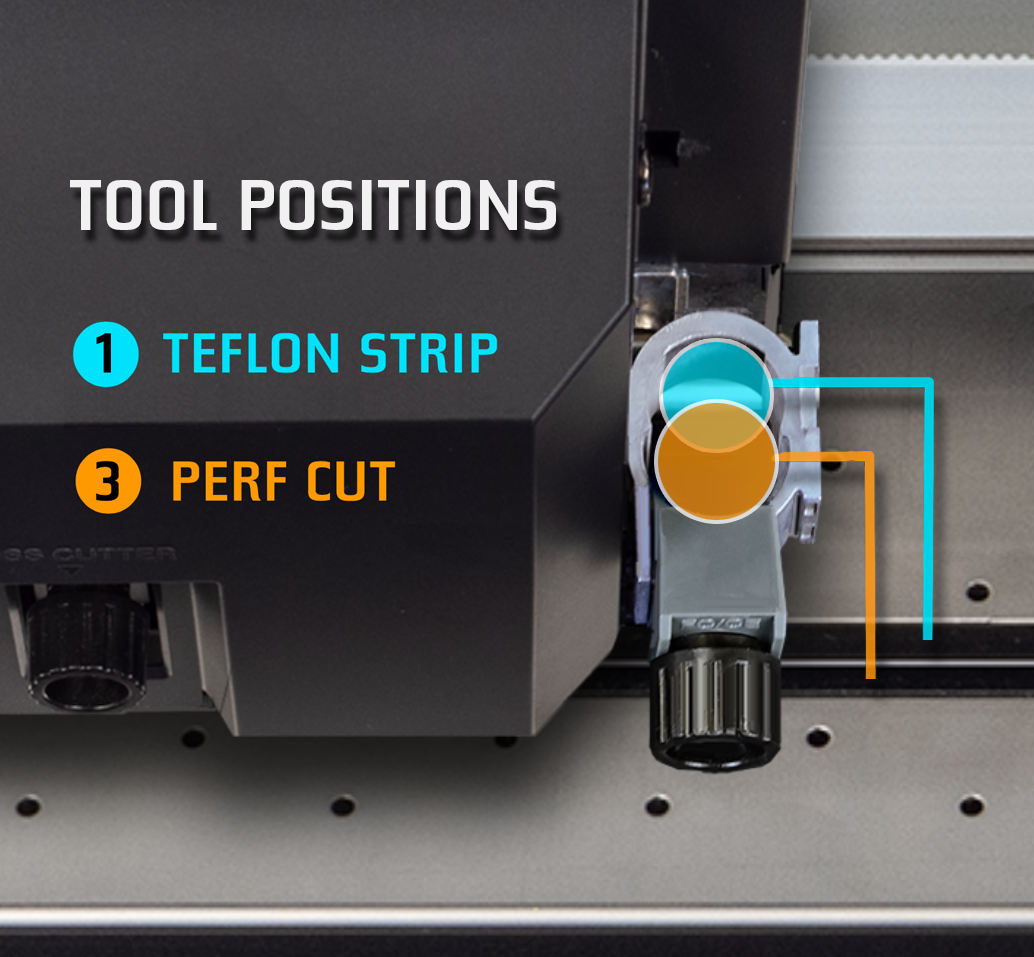

Dedicated tool positions for contour cutting and die cutting help extend the life of your blades and cutting strip. Easily produce decals, labels, and graphics on both sheet and roll media, with clean, precise cuts that allow finished designs to pop out effortlessly.

Powerful, User-Friendly Software

Every new Graphtec cutter includes your choice of Cutting Master 5, a plug-in for Adobe Illustrator and CorelDRAW (Graphics Suite only), or Graphtec Studio 2, Graphtec's intuitive software for designing and cutting graphics.

Both software solutions are compatible with Windows PC and Mac, with convenient connectivity options through USB or Ethernet.

At Graphtec, we make professional cutting simple. From advanced cutting technology to user-friendly software, everything is designed to make your workflow easier and more efficient.

Make your next project easier with Graphtec! Contact your Graphtec Authorized Reseller today.

Market Applications

Expand your Capabilities with the Highly Versatile FC9000 Series

Window Tint Film

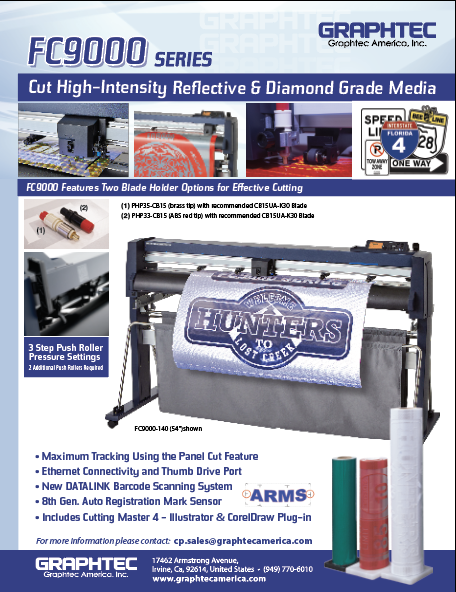

High Intensity Reflective

DTF / Heat Transfer

Safety Shielding

Vinyl Decals

PRINT and CUT

Paint Protection Film

Sandblast Masking

Standard Accessories

Item

Cutting blade

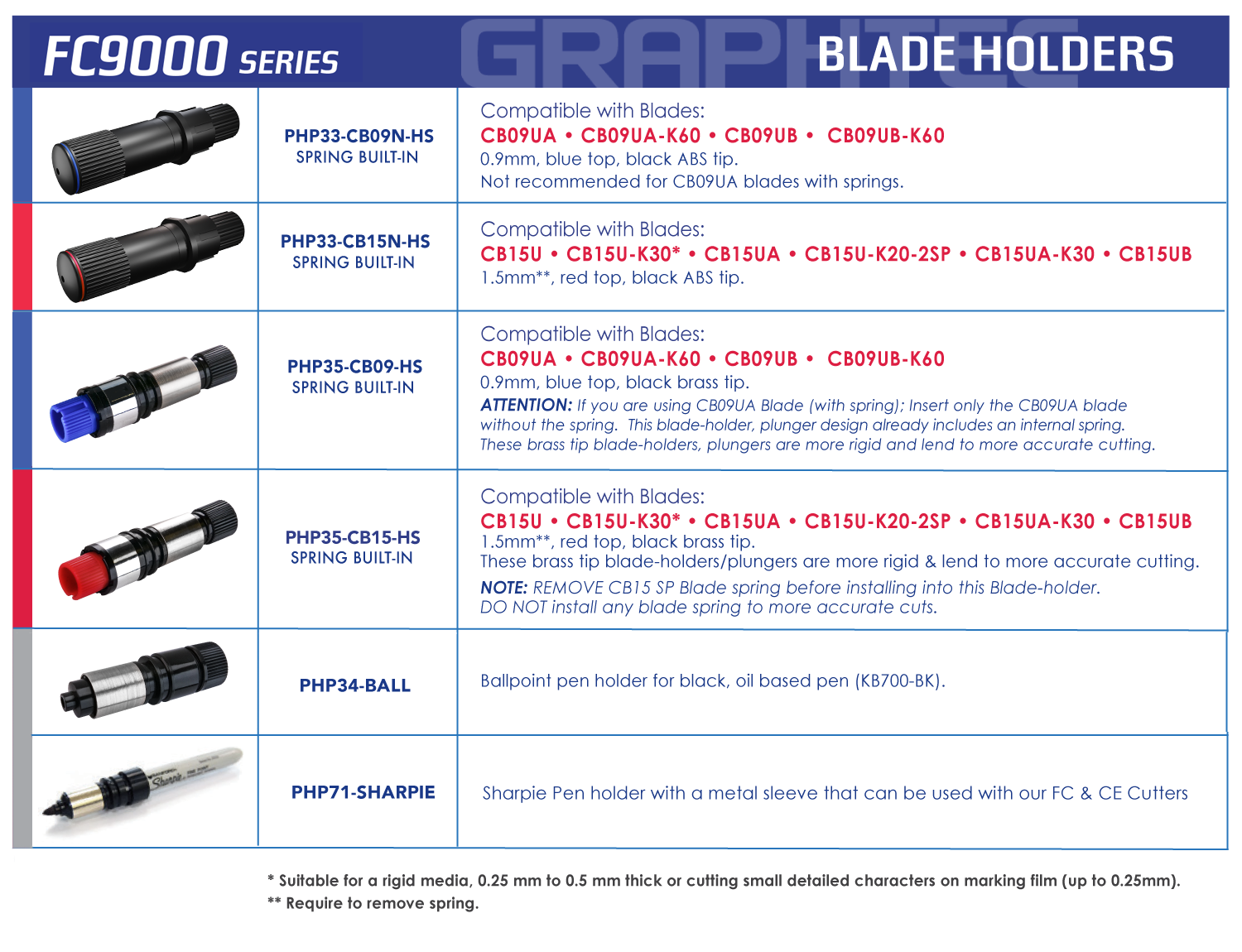

Blade holder

Blade loupe

Stand

Media flange Set

Media basket

Software download

Manuals

USB cable

Power cord

Qty

1

2

1

Description

CB09UB

PHP33-CB09N-HS

PM-CT-001

Parts kit

OPH-A21

Parts kit

Graphtec Studio 2 & Cutting Master 5 for Mac and PC (Registration Required)

Setup Manual, Cutting Blade Manual, and Safety Manual

9.5 feet long

The type of cord is different by destination

Optional Accessories

Item

Media flange

Additional push roller

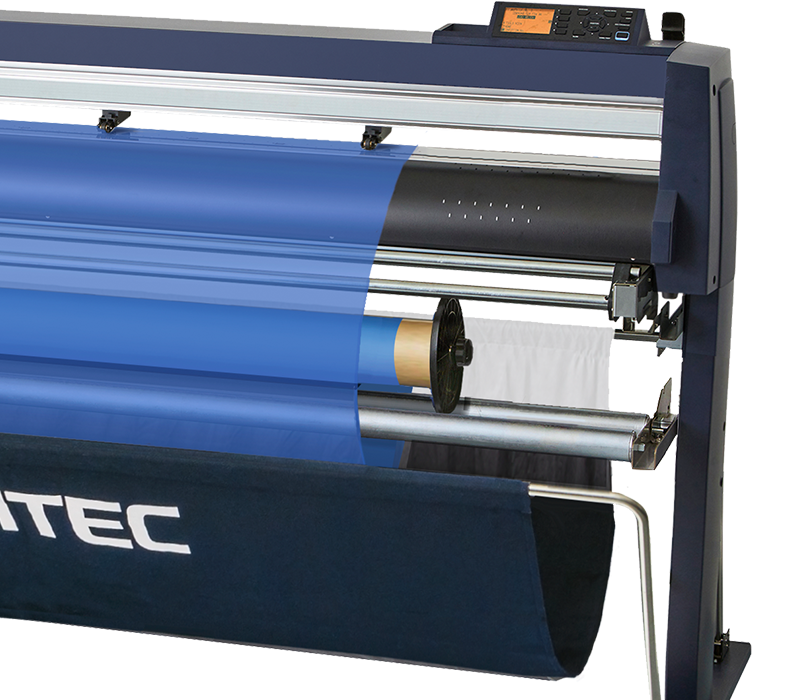

FC9000-140 Take-up System

FC9000-160 Take-up System

Part no.

OPH-A21

OPH-A47

OPH-A43

OPH-A44

Description

Flange for media holding

One additional push roller

Automatic Take-up System for the FC9000-140

Automatic Take-up System for the FC9000-160

Model

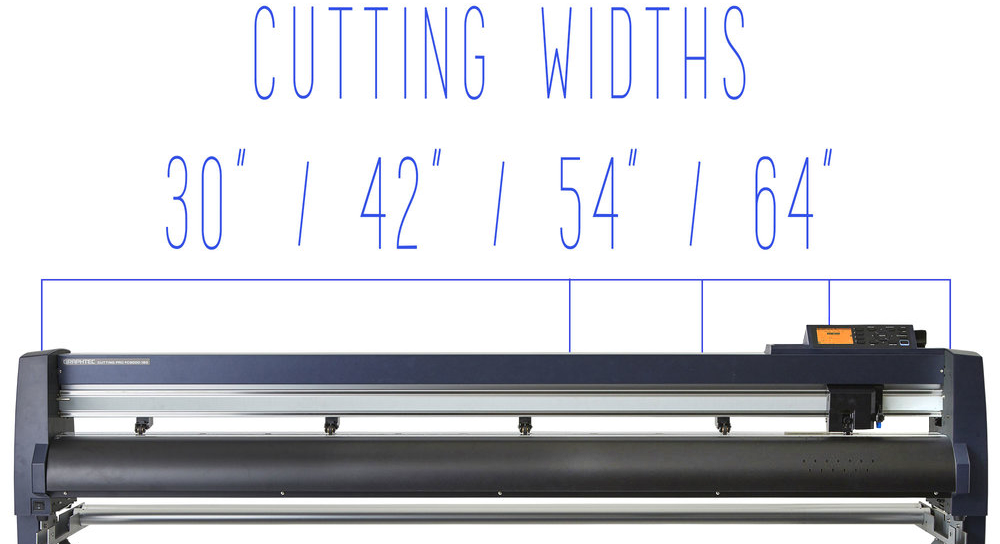

Max. cutting area (WxL) *1

Guaranteed Precision Cutting Area *1

Mountable Media Width *2

Max Cross Cut Width

Number of Push Rollers

CPU

Configuration

Drive Method

Max Cutting Speed

Cutting Force

Axial Acceleration

Compatible Roll Media Diameter

Mechanical Resolution

Programmable Resolution

Distance Accuracy *2

Repeatability *2

Manimum Character Size

Mountable Number of Tools

Blade Types

Pen Type

Pouncing Tool Type

Media Types *3

Compatible Paper for Pouncing

Cross-Cutting

Perforation Cutting

Interface

Buffer Memory

Command Sets

Condition Settings

Display

Power Source

Power Consumption

Operating Environment

Guaranteed Accuracy Environment

External Dimensions (WxDxH)

Weight *8

Included Software *6

Compatible OS *5

Warranty

Safety

EMC

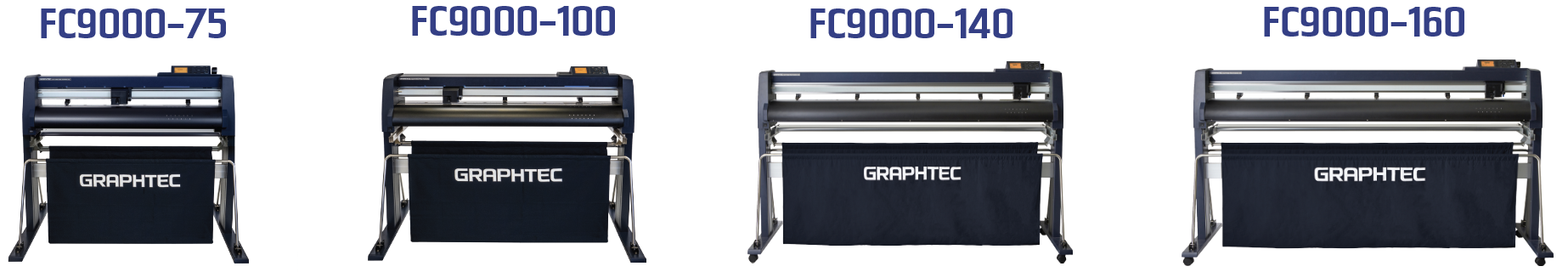

FC9000-75

30" x 164" 762mm x 50mm

29.21 in x 50 ft

Min. 1.96 in, Max. 36.22 in

30"

2 rollers

32-bit CPU

GRit rolling plotter

Digital servo drive

58.5 inches per second (45 degree direction) 41.3 (axis direction)

Max. 600 gf in 48 steps

Max. 39.2 m/s2 (4 G) in 8 steps

Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)

0.005 mm

GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm

Max. 0.1 mm or 0.1 % of plotted length

Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)

Approx. 5 mm alphanumeric (varies depending on character font and media)

1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed

Supersteel (0.9 mm or 1.5 mm diameter)

Oil-based ballpoint pen

Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)

Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick

Regular paper from 0.06 to 0.13 mm thick

Built into the tool carriage

Supported (performed by force control)

USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX

2 MB

GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)

Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)

Graphic type LCD (3.7-inch, backlight)

100 V to 240 V AC, 50 / 60 Hz

AC100-240 V, 50/60 Hz

50 to 95 ºF, 35 to 75 % R.H. (non-condensing)

60 to 89 ºF, 35 to 70 % R.H. (non-condensing)

50" x 28" x 48" 1270 x 711 x 1219 mm

108 lbs.

Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac

Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura)

3 year warranty

PSE, Ul/cUL, CE mark

VCCI class A, FCC class A, CE mark

Model

Max. cutting area (WxL) *1

Guaranteed Precision Cutting Area *1

Mountable Media Width *2

Max Cross Cut Width

Number of Push Rollers

CPU

Configuration

Drive Method

Max Cutting Speed

Cutting Force

Axial Acceleration

Compatible Roll Media Diameter

Mechanical Resolution

Programmable Resolution

Distance Accuracy *2

Repeatability *2

Manimum Character Size

Mountable Number of Tools

Blade Types

Pen Type

Pouncing Tool Type

Media Types *3

Compatible Paper for Pouncing

Cross-Cutting

Perforation Cutting

Interface

Buffer Memory

Command Sets

Condition Settings

Display

Power Source

Power Consumption

Operating Environment

Guaranteed Accuracy Environment

External Dimensions (WxDxH)

Weight *8

Included Software *6

Compatible OS *5

Warranty

Safety

EMC

FC9000-100

42" x 164" 1067mm x 50mm

41 in x 32 ft, 35.2 in x 50 ft

Min. 1.96 in, Max. 48.19 in

42"

3 rollers

32-bit CPU

GRit rolling plotter

Digital servo drive

58.5 inches per second (45 degree direction) 41.3 (axis direction)

Max. 600 gf in 48 steps

Max. 39.2 m/s2 (4 G) in 8 steps

Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)

0.005 mm

GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm

Max. 0.1 mm or 0.1 % of plotted length

Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)

Approx. 5 mm alphanumeric (varies depending on character font and media)

1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed

Supersteel (0.9 mm or 1.5 mm diameter)

Oil-based ballpoint pen

Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)

Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick

Regular paper from 0.06 to 0.13 mm thick

Built into the tool carriage

Supported (performed by force control)

USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX

2 MB

GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)

Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)

Graphic type LCD (3.7-inch, backlight)

100 V to 240 V AC, 50 / 60 Hz

AC100-240 V, 50/60 Hz

50 to 95 ºF, 35 to 75 % R.H. (non-condensing)

60 to 89 ºF, 35 to 70 % R.H. (non-condensing)

61.8" x 28" x 48" 1570 x 715 x 1219 mm

123 lbs.

Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac

Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura)

3 year warranty

PSE, Ul/cUL, CE mark

VCCI class A, FCC class A, CE mark

Model

Max. cutting area (WxL) *1

Guaranteed Precision Cutting Area *1

Mountable Media Width *2

Max Cross Cut Width

Number of Push Rollers

CPU

Configuration

Drive Method

Max Cutting Speed

Cutting Force

Axial Acceleration

Compatible Roll Media Diameter

Mechanical Resolution

Programmable Resolution

Distance Accuracy *2

Repeatability *2

Manimum Character Size

Mountable Number of Tools

Blade Types

Pen Type

Pouncing Tool Type

Media Types *3

Compatible Paper for Pouncing

Cross-Cutting

Perforation Cutting

Interface

Buffer Memory

Command Sets

Condition Settings

Display

Power Source

Power Consumption

Operating Environment

Guaranteed Accuracy Environment

External Dimensions (WxDxH)

Weight *8

Included Software *6

Compatible OS *5

Warranty

Safety

EMC

FC9000-140

54" x 164" 1372mm x 50mm

53 in x 32 ft, 35.2 in x 50 ft

Min. 1.96 in, Max. 60.20 in

54"

4 rollers

32-bit CPU

GRit rolling plotter

Digital servo drive

58.5 inches per second (45 degree direction) 41.3 (axis direction)

Max. 600 gf in 48 steps

Max. 39.2 m/s2 (4 G) in 8 steps

Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)

0.005 mm

GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm

Max. 0.1 mm or 0.1 % of plotted length

Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)

Approx. 5 mm alphanumeric (varies depending on character font and media)

1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed

Supersteel (0.9 mm or 1.5 mm diameter)

Oil-based ballpoint pen

Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)

Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick

Regular paper from 0.06 to 0.13 mm thick

Built into the tool carriage

Supported (performed by force control)

USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX

2 MB

GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)

Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)

Graphic type LCD (3.7-inch, backlight)

100 V to 240 V AC, 50 / 60 Hz

AC100-240 V, 50/60 Hz

50 to 95 ºF, 35 to 75 % R.H. (non-condensing)

60 to 89 ºF, 35 to 70 % R.H. (non-condensing)

73.6" x 28" x 48" 1870 x 711 x 1219 mm

141 lbs., 178 lbs. /w take-up

Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac

Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura)

3 year warranty

PSE, Ul/cUL, CE mark

VCCI class A, FCC class A, CE mark

Model

Max. cutting area (WxL) *1

Guaranteed Precision Cutting Area *1

Mountable Media Width *2

Max Cross Cut Width

Number of Push Rollers

CPU

Configuration

Drive Method

Max Cutting Speed

Cutting Force

Axial Acceleration

Compatible Roll Media Diameter

Mechanical Resolution

Programmable Resolution

Distance Accuracy *2

Repeatability *2

Manimum Character Size

Mountable Number of Tools

Blade Types

Pen Type

Pouncing Tool Type

Media Types *3

Compatible Paper for Pouncing

Cross-Cutting

Perforation Cutting

Interface

Buffer Memory

Command Sets

Condition Settings

Display

Power Source

Power Consumption

Operating Environment

Guaranteed Accuracy Environment

External Dimensions (WxDxH)

Weight *8

Included Software *6

Compatible OS *5

Warranty

Safety

EMC

FC9000-160

64" x 164" 1626mm x 50mm

63 in x 32 ft, 35.2 in x 50 ft

Min. 1.96 in, Max. 72.83 in

64"

4 rollers

32-bit CPU

GRit rolling plotter

Digital servo drive

58.5 inches per second (45 degree direction) 41.3 (axis direction)

Max. 600 gf in 48 steps

Max. 39.2 m/s2 (4 G) in 8 steps

Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)

0.005 mm

GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm

Max. 0.1 mm or 0.1 % of plotted length

Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)

Approx. 5 mm alphanumeric (varies depending on character font and media)

1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed

Supersteel (0.9 mm or 1.5 mm diameter)

Oil-based ballpoint pen

Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)

Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick

Regular paper from 0.06 to 0.13 mm thick

Built into the tool carriage

Supported (performed by force control)

USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX

2 MB

GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)

Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)

Graphic type LCD (3.7-inch, backlight)

100 V to 240 V AC, 50 / 60 Hz

AC100-240 V, 50/60 Hz

50 to 95 ºF, 35 to 75 % R.H. (non-condensing)

60 to 89 ºF, 35 to 70 % R.H. (non-condensing)

84" x 28" x 48" 2133 x 711 x 1219 mm

154 lbs., 195 lbs. /w take-up

Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac

Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura)

3 year warranty

PSE, Ul/cUL, CE mark

VCCI class A, FCC class A, CE mark

*1: Operated with Graphtec specified cutting conditions and media. For long-length cutting, the basket is used.
*2: There are conditions for operation when setting the media.
*3: HP-GL is a registered trademark of Hewlett-Packard Company.
*4: CB15UA/CB15UA-K30 blades and reinforced backing sheets are recommended for certain grades of high- intensity reflective film.
*5: Graphtec does not support software / drivers used with operating systems that have become obsolete and are no longer supported by the OS developer.
*6: Software is available for download from Graphtec’s website.
*8: Includes stand and basket.

Brochures

FC900 Brochure

FC9000 - Take-Up System

High Intensity Reflective Media

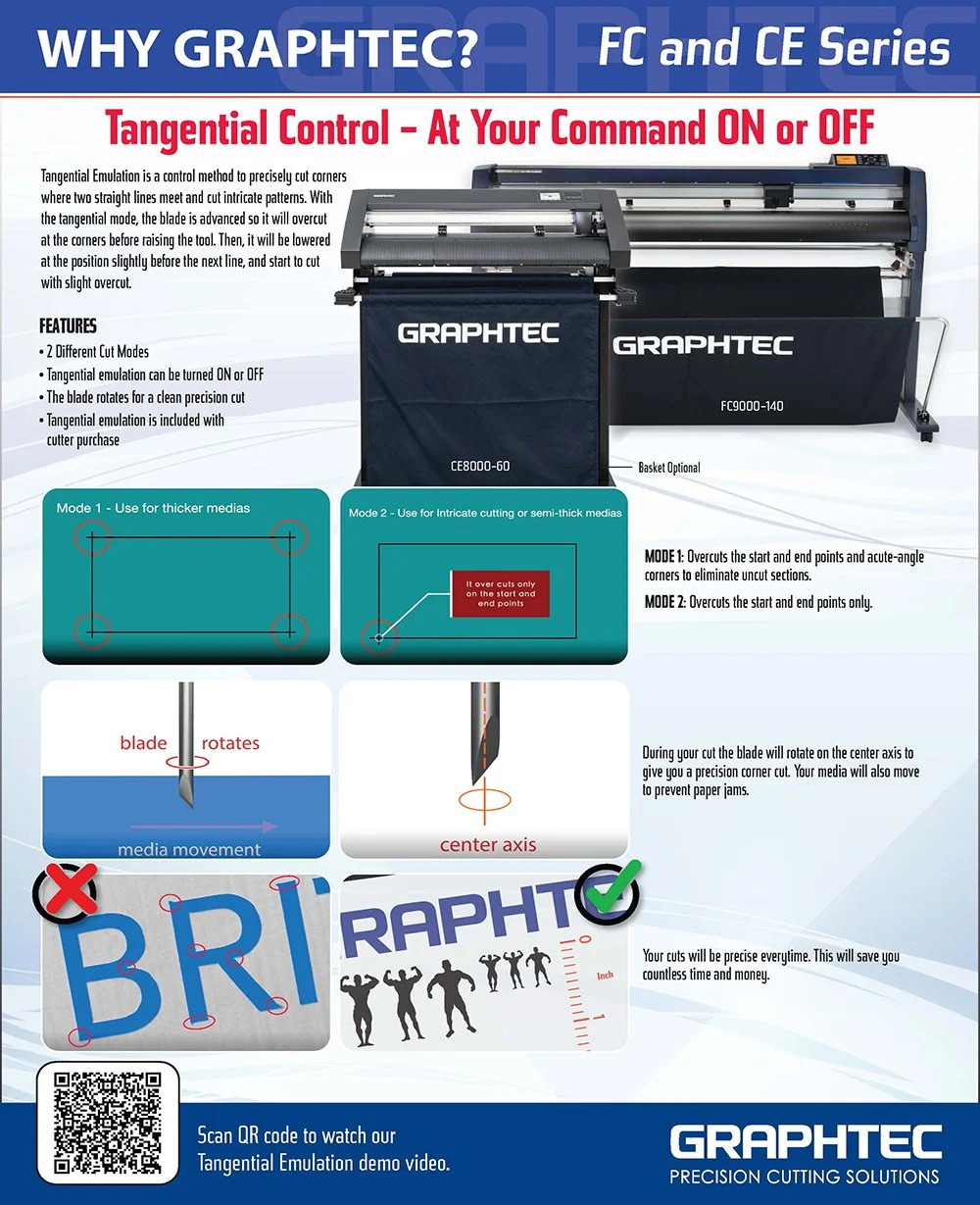

FC9000 Tangential Emulation

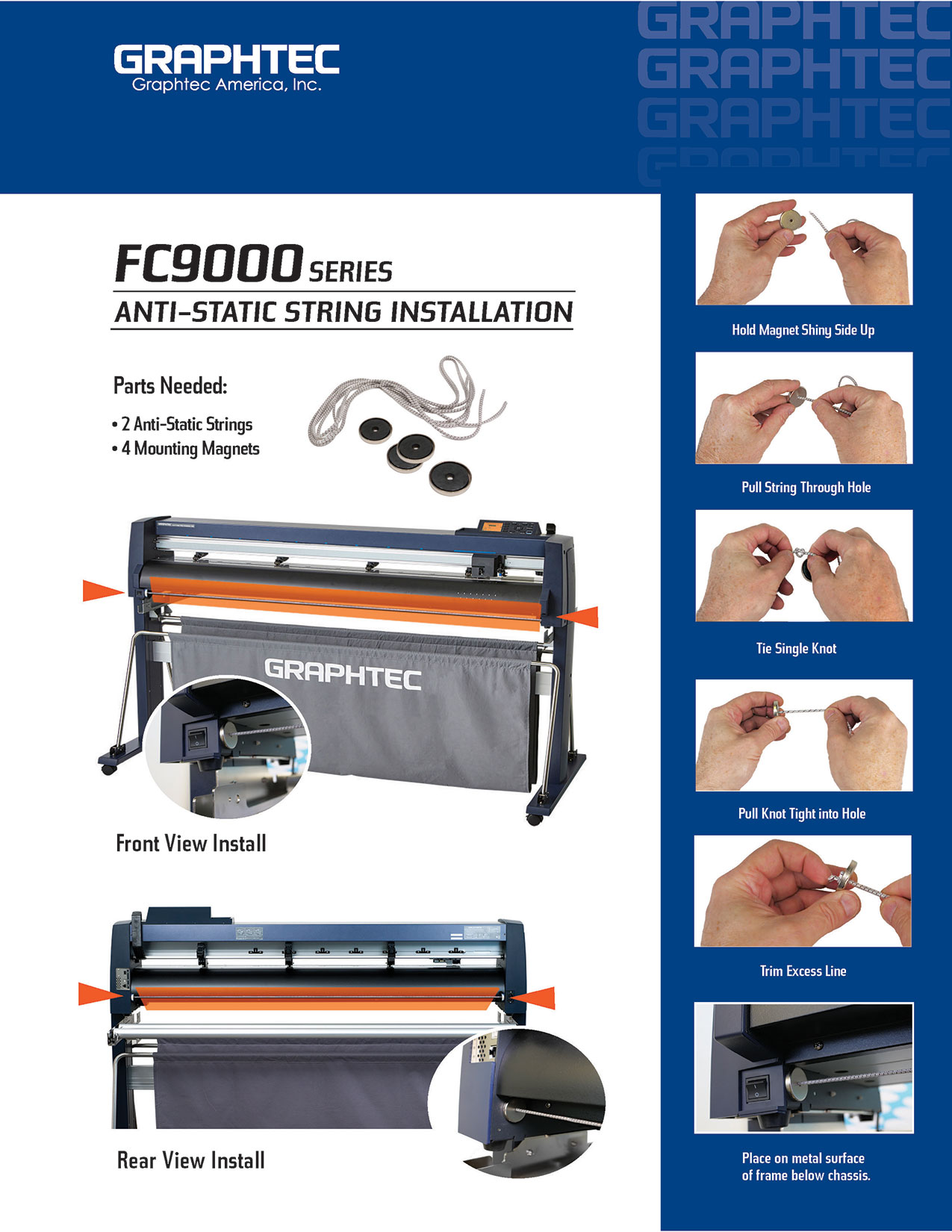

Anti-Static String Installation

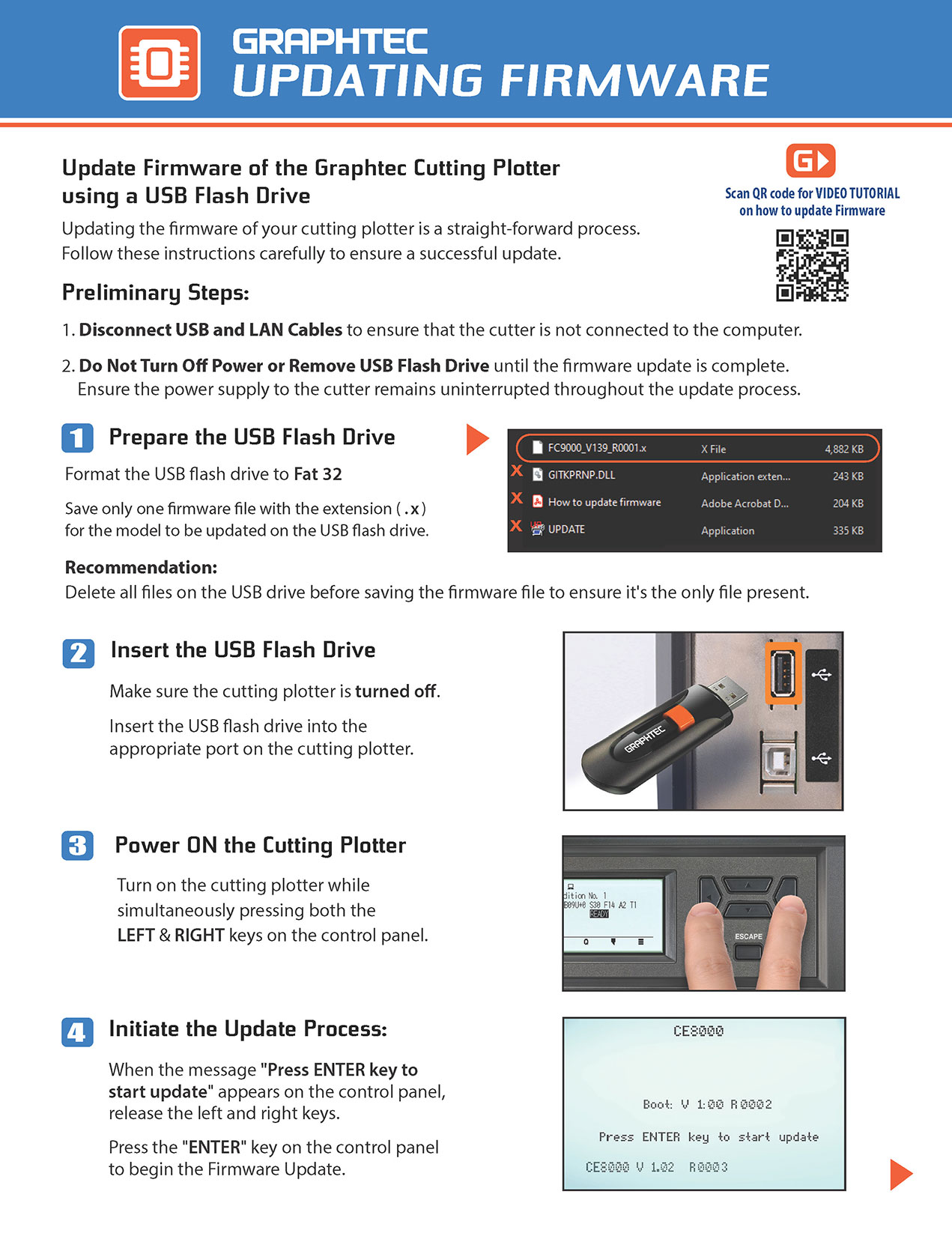

Updating Firmware

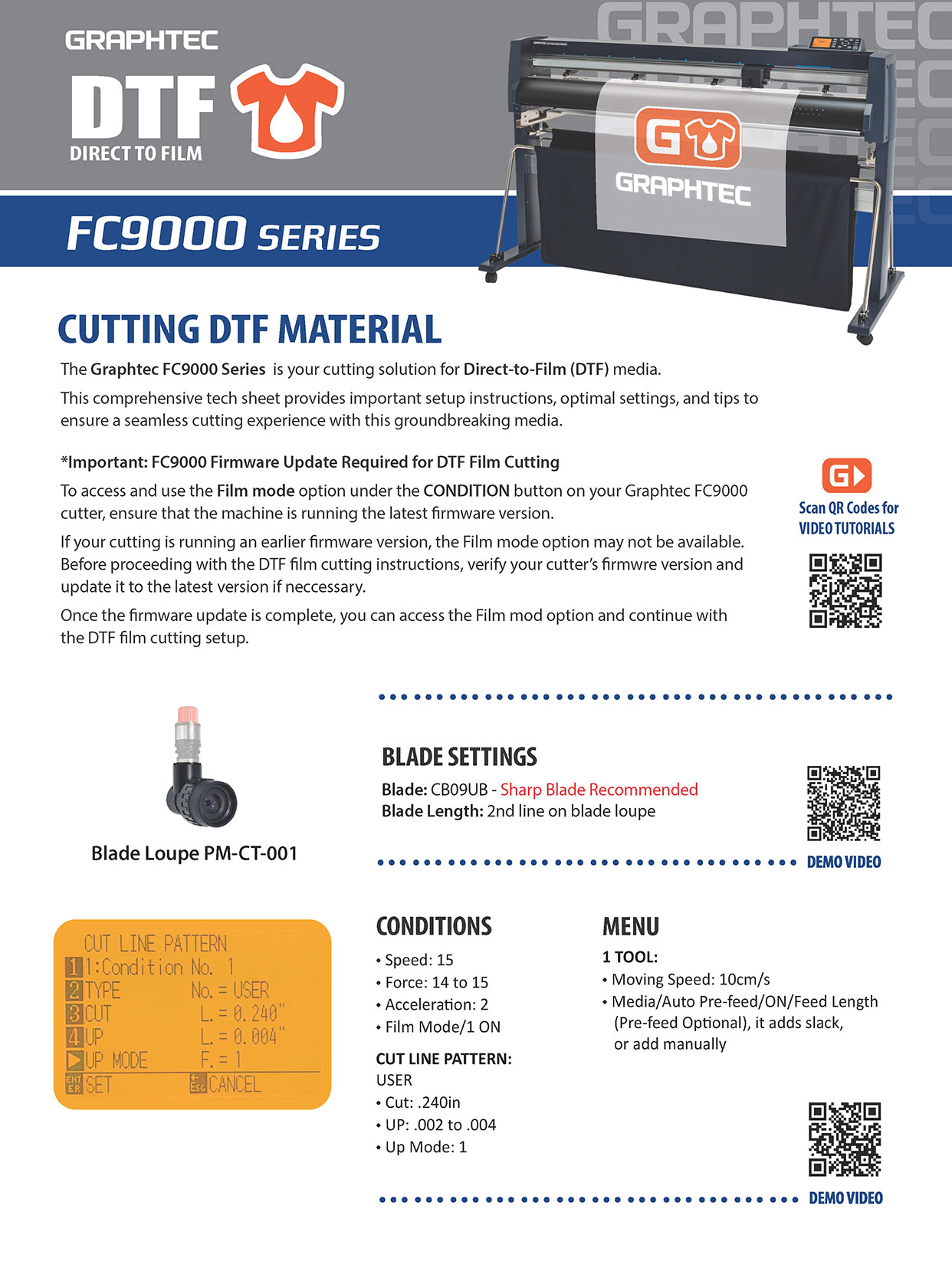

Cutting DTF Material

Drivers, Firmware, and Manuals

Drivers

FC9000 Series



Window 10 OPS662 V4.30 32bit



Win 11 OPS662 V4.30 64bit

*Driver must be installed before Firmware

Firmware

FC9000 Series



Additional & Corrections

*Driver must be installed before Firmware

Manuals

FC9000 Series

i

User Manual

i

Setup Manual

i

Firmware Ver 2.0 Updates Manual - NEW

Graphtec PLUG-IN and Software

You MUST REGISTER your Graphtec cutter to download our PLUG-IN or Software.

Is your computer compatible with our PLUG-IN or SOFTWARE?

Check Compatibility

CUTTING MASTER 5 PLUG-IN

Our Cutting Master 5 PLUG-IN is compatible with Adobe Illustrator and CoralDraw (Graphic Suite Only)
How to add the Launch menu in CorelDraw

Register Now and Download CM5 PLUG-IN

GRAPHTEC STUDIO 2 Software

Our Graphtec Studio 2 software is compatible with Windows or Mac computers

Register Now and Download GS2 Software

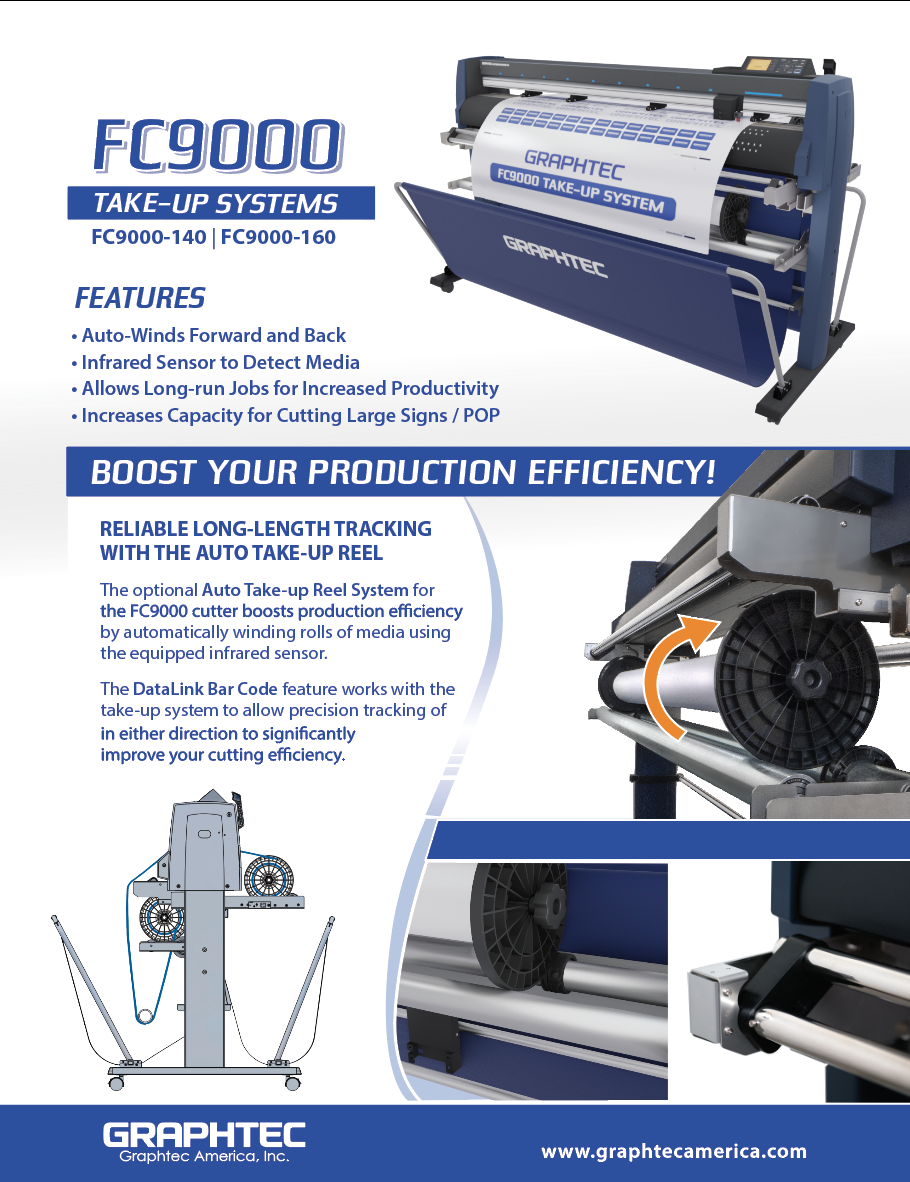

Boost Production Efficiency with the Graphtec Automatic Take-Up System

Designed for the Graphtec FC9000-140 and FC9000-160 models, the optional Automatic Take-Up System enhances production efficiency by automatically winding finished media rolls using an integrated infrared sensor. This hands-free operation helps streamline workflows and reduce manual handling.

When paired with Graphtec’s DataLink Barcode System, the take-up system enables accurate tracking and processing of multiple jobs on a single roll of media, up to 65 feet in length. With the ability to automatically wind media in either direction, this system helps optimize cutting operations, minimize downtime, and maximize overall production efficiency.

Automatic Take-Up Reel

The optional Automatic Take-Up Reel enhances production efficiency by automatically winding media rolls up to 65 feet long, using an integrated infrared sensor for seamless, hands-free operation.

Compatible with the Graphtec FC9000-140 and FC9000-160 models.

Learn More
