• NEW CONTROL PANEL
• NEW WIRELESS LAN Module
• NEW TOOL HOLDER

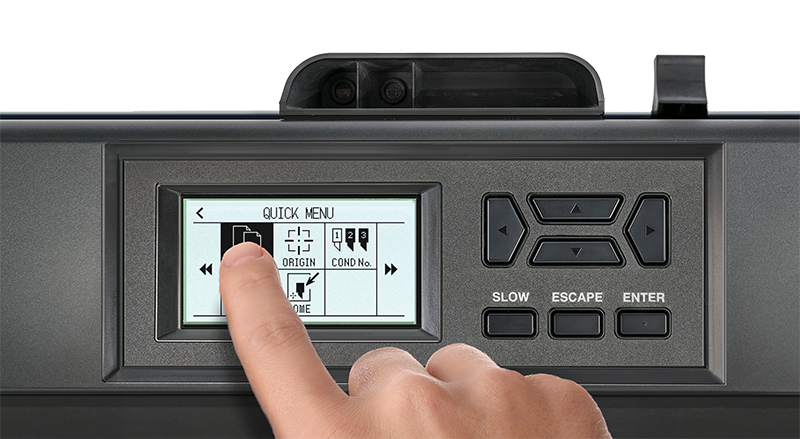

A NEW TOUCH PANEL with MECHANICAL KEYS
gives users more flexibility with it’s Blind Touch Operation enabling the operator to continually keep eyes on media while feeding.

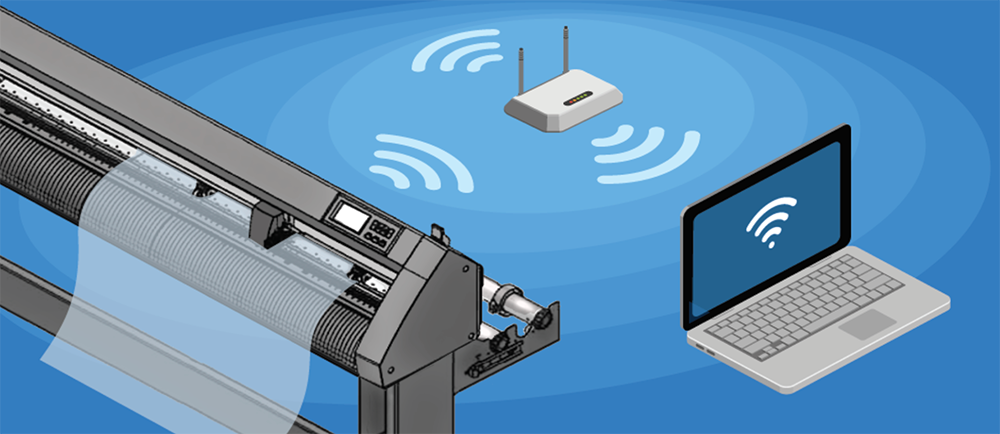

NEW Wireless LAN:
The CE8000 includes a wireless LAN connection option which improves flexibility of installation locations.
Pressure Adjustable Push Rollers along with newly developed Media Set Assist Function help to hold your media stable and prevent feeding problems.
EMAIL NOTIFICATION:
Completion and Error Notifications can be sent to to users by e-mail
NEW FAN MEDIA ASSIST
The CE8000 internal fan automatically turns on as sensors recognize media to support feeding

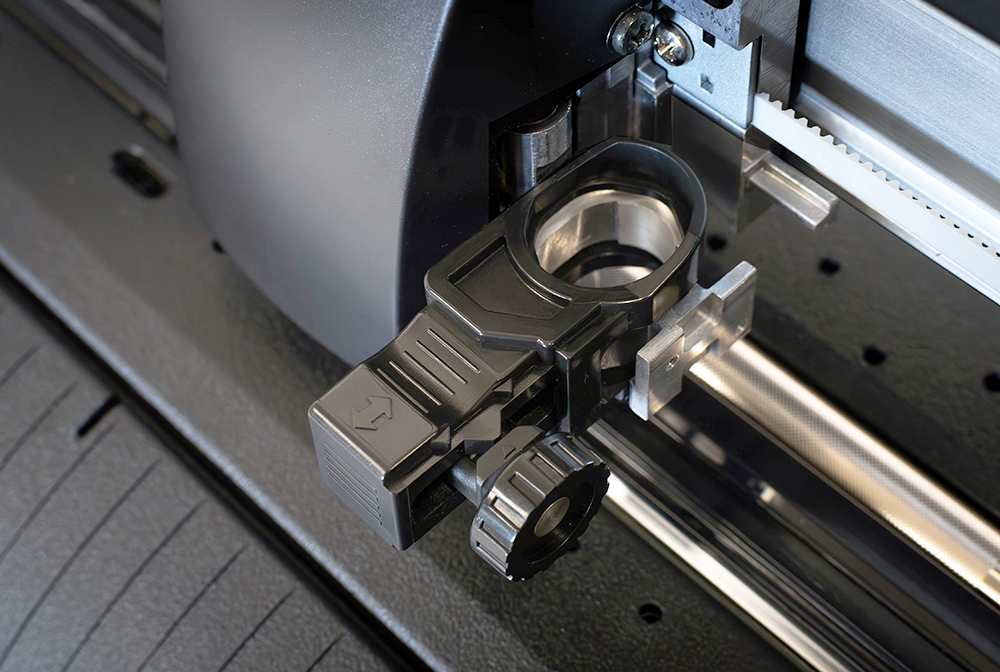

NEW Tool Holder:
Improved design makes it easier to change tools and blade position by sliding the stopper forward and back.

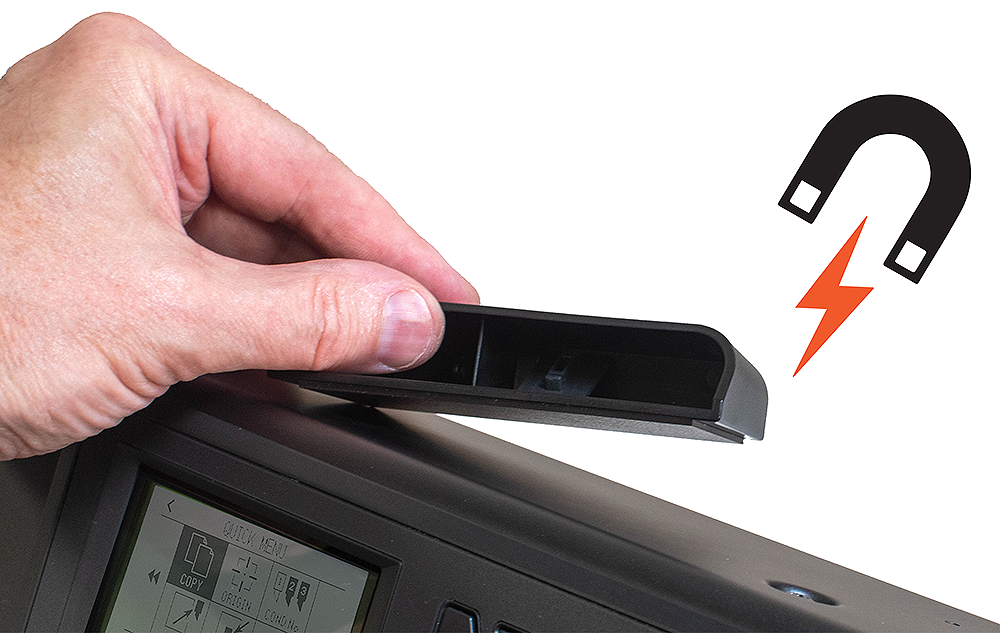

Tool compartment now has a magneticbase making it easy to move location and allows option to remove if needed.

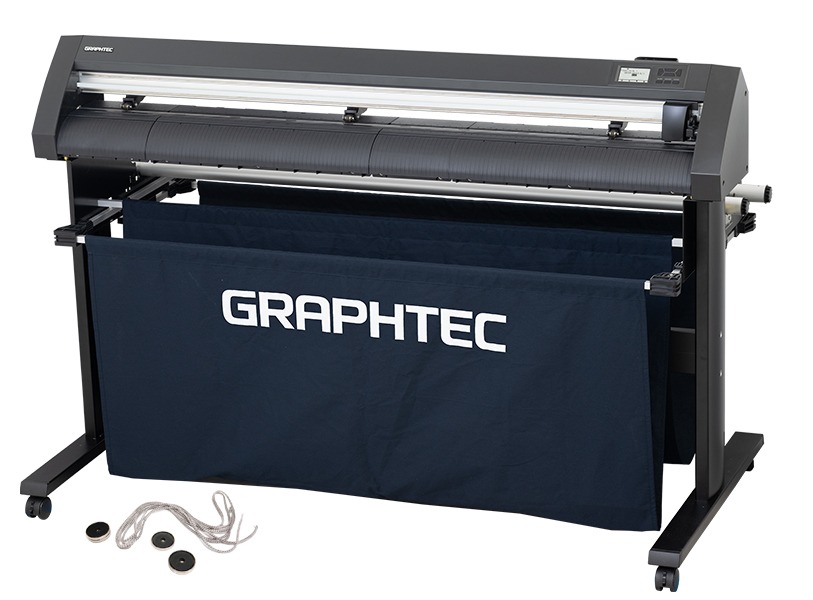

The Graphtec CE8000-130AKZ cutter has been specifically designed for the aftermarket automotive industry. Modified for the streamlined cutting of Window Tint Film, Paint Masking, Vinyl Lettering, Graphics and similar applications, this versatile cutter will boost your productivity to the next level. A heavy duty precision servo motor delivers accurate cutting speeds of up to 39 inches per second with an unsurpassed 15 feet of tracking.
CE8000-130AKZ FEATURES
• Impressive 450 Grams of Downforce!
• Blazing Fast 39 Inches-per-second Cutting Speed
• New Touch Screen Control Panel
• Open Software Platform
• Wireless Connectivity
• USB Thumb Drive Connectivity - No Computer Needed!
The CE8000-130AKZ boasts our Popular Cutting Channel to allow easy perforated cut or through cut operations. This powerful cutter comes with our full complement of Graphtec Software including Cutting Master 5 plug in for Adobe and Corel Users and our ever-popular Graphtec Studio 2 software for design and cut graphics. The CE8000 series works with both PC and MAC platforms, connect wireless or use the handy new USB Thumb Drive Port if needed.
INCLUDED ACCESSORIES
The CE8000-130AKZ includes the accessories specially tailored for
precision cutting of thin films and static sensitive media.

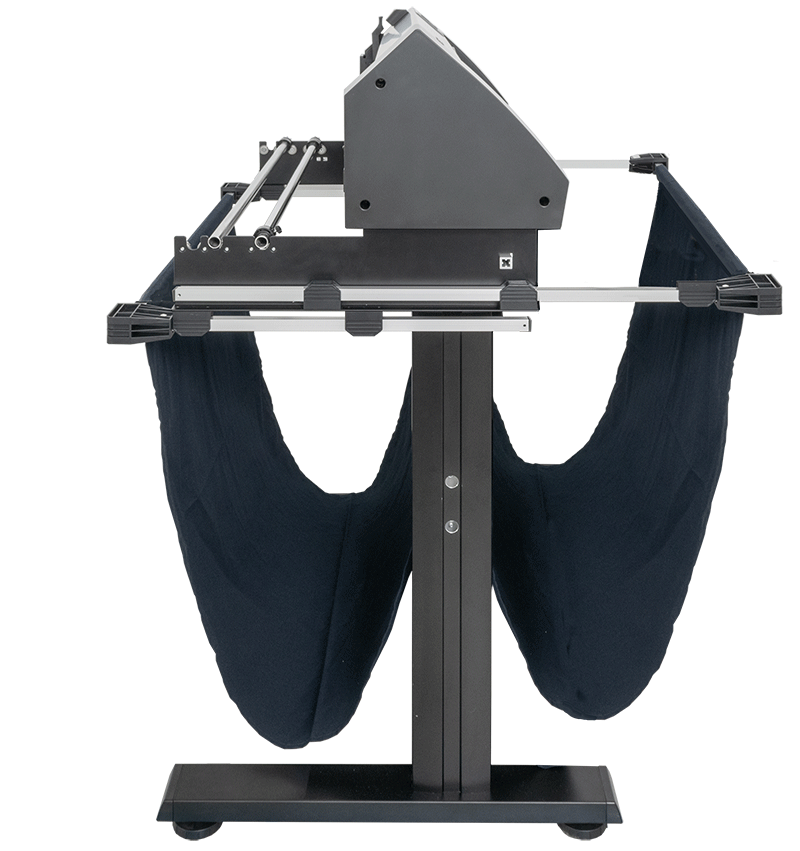

• Media Catch Basket
• Anti-electrostatic Strings with Magnet
• CB09UB-K60 – 2 pack Blades
Graphtec makes everything EASY, so contact your nearest Authorized Reseller today!
Top-level Cutting Performance
FEATURES
NEW TOUCH PANEL with MECHANICAL KEYS
This new feature of the CE8000 gives users more flexibility with it’s
Blind Touch Operation enabling the operator to continually keep eyes
on media while it’s feeding
NEW MENU STRUCTURE
Revisions to the menu are more intuitive and efficient utilizing the new touch screen feature
with icons that allow for easier operation.
• Check for New Firmware using Software Download / Update via Wireless LAN or USB
• Update New Firmware with Thumb Drive when operating without network connection

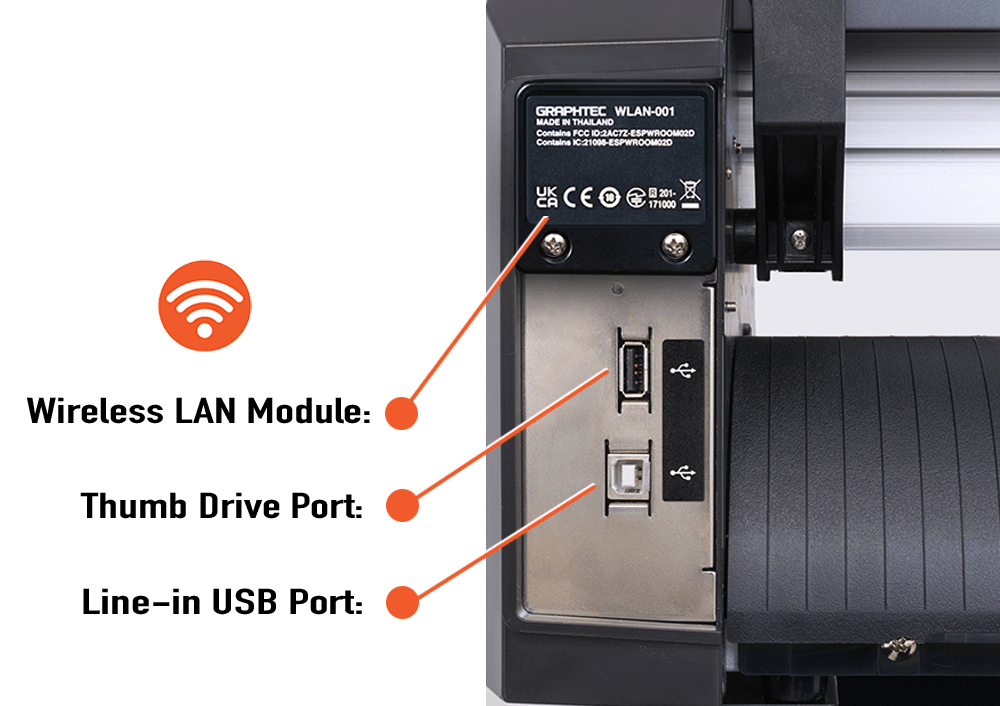

NETWORK CONNECTION
Wireless LAN connection option improves flexibility of installation locations and environments.
USB Offline Operation
A secondary USB port is available for placing thumb drives so jobs can be uploaded and cut without the need of a computer. Select barcode function or select file directly from the thumb drive.

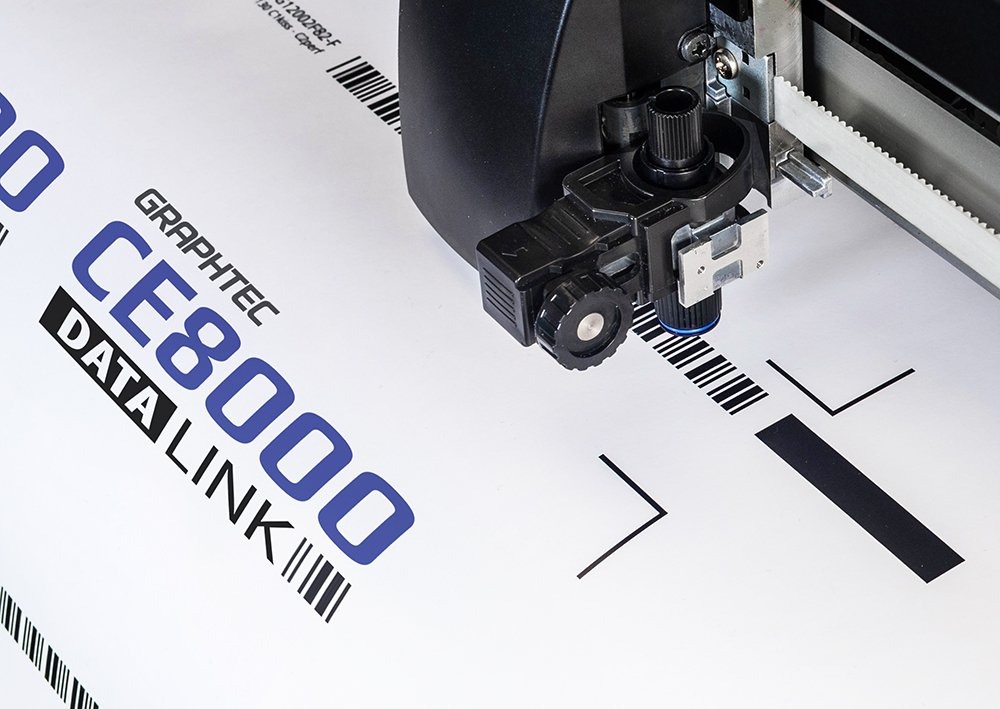

Datalink Barcode
By utilizing barcodes, you can save time and minimize the risk of production errors when handling numerous tasks with just a button press.
DataLink can accommodate any blend of RIP software and printer, along with the bundled software of Cutting Master and Graphtec Pro Studio.
The CE8000 can identify cutting data linked to barcodes from the user's PC or USB flash memory, access the appropriate file, adjust the cutting settings, and initiate the cutting process automatically.
print & cut accuracy
NEW ARMS 9
A new and improved Advanced Registration Mark Sensing System, or ARMS, for print and cut applications. The DataLink Barcode system is the new addition to ARMS. Barcodes may now be generated and printed as part of the design which creates a hand’s free operation. The reading of Registration marks is faster increasing productivity.
Contour & die cut
Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.

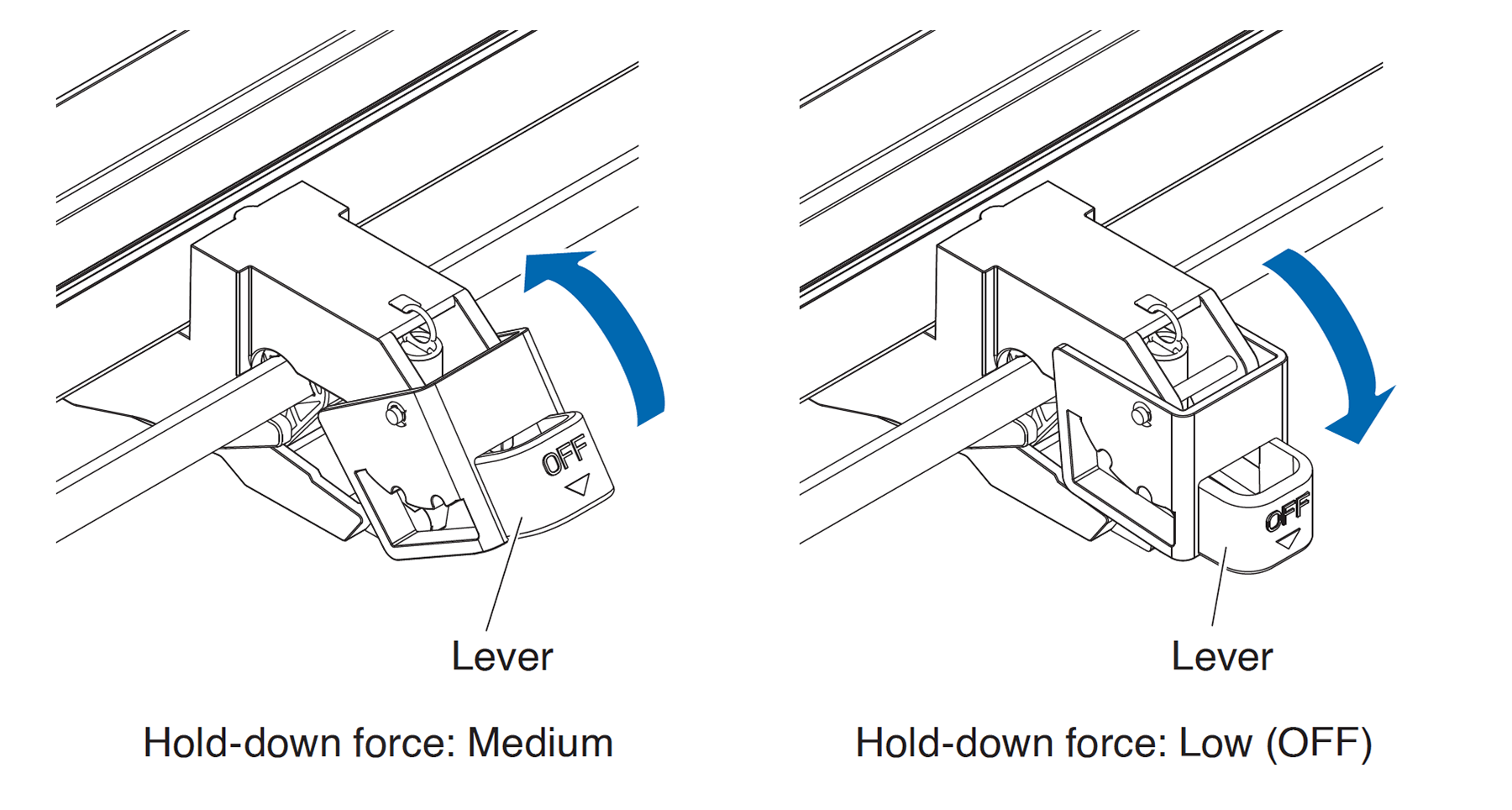

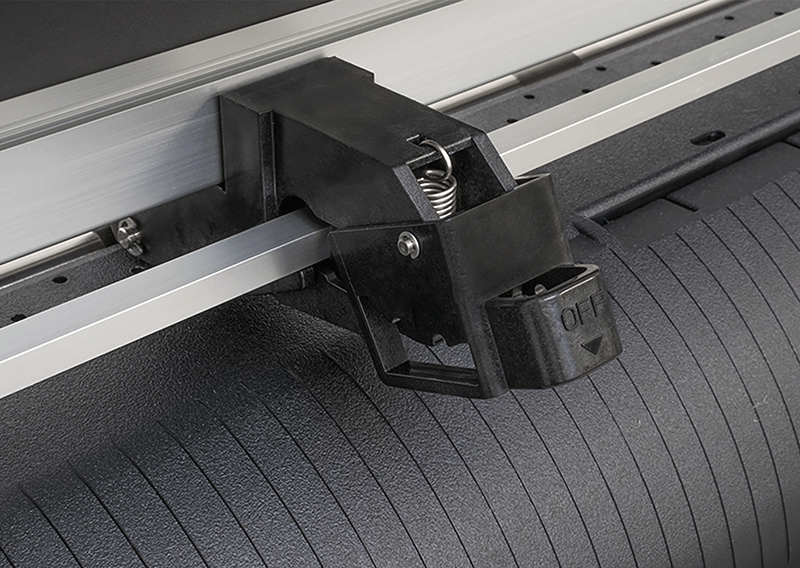

NEW PUSH ROLLER DESIGN
CE8000-130 Push roller design has changed so only the center push roller can engage / disengage which makes force adjustments easier.

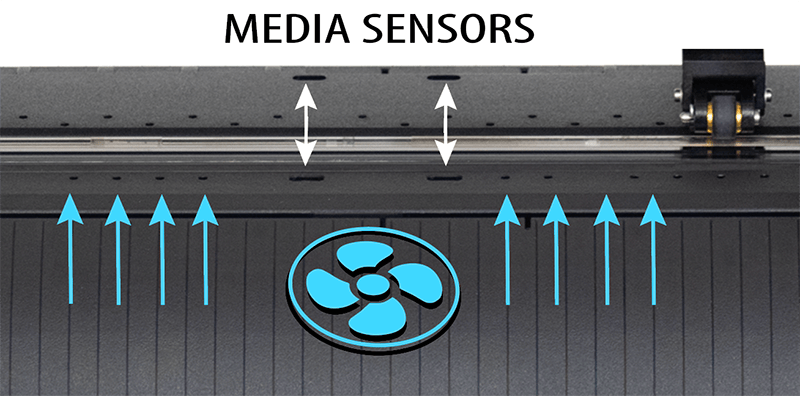

NEW FAN MEDIA ASSIST
The CE8000 internal fan automatically turns on as sensors recognize media to support feeding

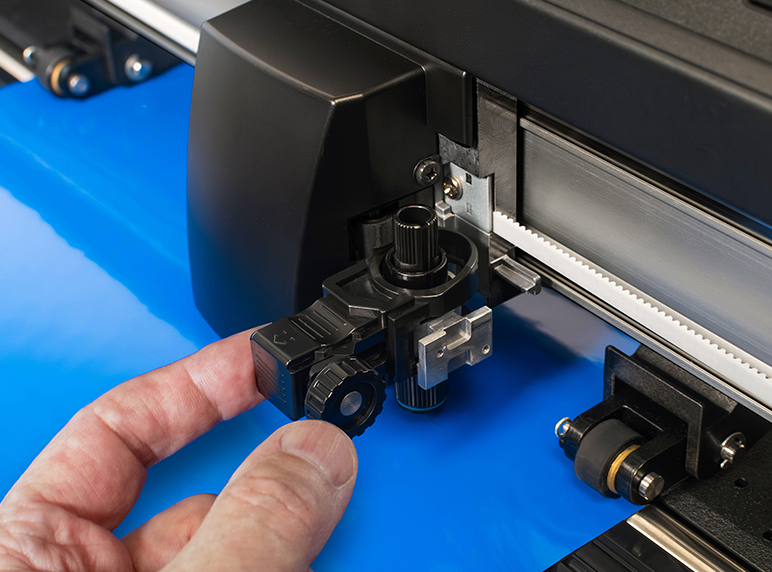

IMPROVED TOOL MOUNT
New Holder design makes it easier to change tools and blade position by sliding the stopper forward and back.
SOFTWARE
The CE8000 Series comes complete with our full complement of
Graphtec Software along with Ethernet Connectivity.
Software includes Cutting Master 5 plug-in for Adobe & Corel Users
and our popular Graphtec Studio 2 software for design & cut graphics.
The CE8000 series works with both PC and MAC platforms,
or use the USB Thumb Drive Port if needed.
Graphtec makes everything EASY, so
contact your Graphtec Authorized Reseller today!
STANDARD ACCESSORIES
| Item | Qty | Description |
|---|---|---|
| Cutting blade holder | 1 | PHP33-CB09N-HS |
| Cutting Blade | 1 | CB09UB |
| Cutting Blade | 2 | CB09UB-K60 |
| Anti-Static Kit | 1 | Anti-electrostatic Strings with Magnets |
| Fiber-tip pen holder | 1 | PHP31-FIBER |
| Water-based fiber-tip pen | 1 | KF700-BK (black) |
| Stand | 1 | Parts kit |
| Media Basket | 1 | PG0112 CE8000-130 |
| Software Download | 1 | Graphtec Studio 2 & Cutting Master 5 for Mac and PC |
| Printed Documents | 1 | Setup Manual, Cutting Blade Manual, and Safety Manual |
| Power cord | 1 | The type of cord is different by destination |
| Item | Part No. | Description | Package |
|---|---|---|---|
| Blade Holder | PHP33-CB09N-HS | For CB09U series blade | 1 set/pack |
| PHP33-CB15N-HS | For CB15U series blade | 1 set/pack | |
| PHP35-CB09-HS | For CB09U series blade | 1 set/pack | |
| PHP35-CB15-HS | For CB15U series blade | 1 set/pack | |
| Cutting Blade | CB09UB-5 | 0.9mm dia. 45º angle, Supersteel | 5 blades/pack |
| CB09UB-K60-5 | 0.9mm dia. 30º angle, for thin film (Japan 60º) | 5 blades/pack | |
| CB15U-5 | 1.5mm dia. 45º angle, supersteel | 5 blades/pack | |
| CB15UA-K30-5 | 1.5mm dia. 60º angle, for high intensity reflective film | 5 blades/pack | |
| CT02U | High durability type | 1 blade/pack | |
| Water-based Fiber-tip Pen and Pen Holder |
KF700-BK | Pen (black) | 10 pens/pack |
| KF700-RD | Pen (red) | 10 pens/pack | |
| KF700-BL | Pen (blue) | 10 pens/pack | |
| PHP31-FIBER | Pen holder for KF700 series pen | 1 set/pack | |
| Oil-based Ballpoint Pen and Pen Holder |
KB700-BK | Pen (black) | 10 pens/pack |
| PHP34-BALL | Pen holder for KB700 pen | 1 set/pack |
OPTIONAL ACCESSORIES
| Item | Part No. | Description |
|---|---|---|
| Loupe | PM-CT-001 | |
| USB Cable | 1 | 9.5 feet long |
| Item | CE8000-130 AKZ | |||
|---|---|---|---|---|
| Configuration | Grit roller with digital servo drive system | |||
| Maximum cutting area (W x L) | 50" x 164' | |||
| Cutting area of guaranteed accuracy | 50”×79” / 49”×16.4’ *1 / *2 | |||
| Mountable media width | 2" / 54" | |||
| Number of push rollers | 3 rollers | |||
| Maximum cutting speed | 39"/s, at 45º direction | |||
| Maximum acceleration | 45.60' (13.9 m/s2), at 45º direction | |||
| Maximum cutting force | 4.41 N (450 gf) | |||
| Minimum character size | Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media) | |||
| Programmable resolution | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm | |||
| Repeat-ability | Max. 0.1 mm in plot up to 2 m (*1) | |||
| Mountable number of tools | 1 tool | |||
| Blade type | Supersteel | |||
| Pen type | Oil-based ballpoint, Water-based fiber-tip pen | |||
| Media type | Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) Stencil material | |||
| Interface | USB 2.0 (Full Speed) • Wireless LAN • 10BASE-T/100BASE-TX | |||
| Buffer memory | 2 MB | |||
| Command sets | GP-GL / HP-GL™ (Set by command or auto-detect) | |||
| Display | Touch Panel Screen (240-dot x 128-dot), supports 10 languages | |||
| Registration Mark Sensing System |
Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection | |||
| Alignment accuracy | Maximum 0.3 mm with printed image (when reading specified registration marks) | |||
| Power source | 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz | |||
| Power consumption | 120 VA | |||
| Operating environment | 10 to 35 ºC, 35 to 75 % R.H. (non-condensing) | |||
| Guaranteed accuracy environment | 16 to 32 ºC, 35 to 70 % R.H. (non-condensing) | |||
| External dimensions (W x D x H) | Approx. 65" x 32" x 42.3" | |||
| Weight (Approx.) | 106 lbs (40kg) | |||
| Compatible OS (*2) | Windows 11 /10 / 8.1 / 64-bit editions Mac OS 10.2 (Sierra) to 13 (Ventura) |
|||
| Included software (download) | Graphtec Studio 2, Cutting Master 5 for Windows, and Mac | |||
| Compatibility Standards | Safety | PSE, UL/cUL, CE mark | ||
| EMC | VCCI Class A, FCC Class A, CE mark | |||
*1: Varies depending on the type of Graphtec-authorized film and the cutting conditions.
*2: When using basket.
*3: HP-GL is a registered trademark of the US Hewlett Packard Company.
*4: Roll-medium tray or stand is included.
*5: Option provided at the factory.

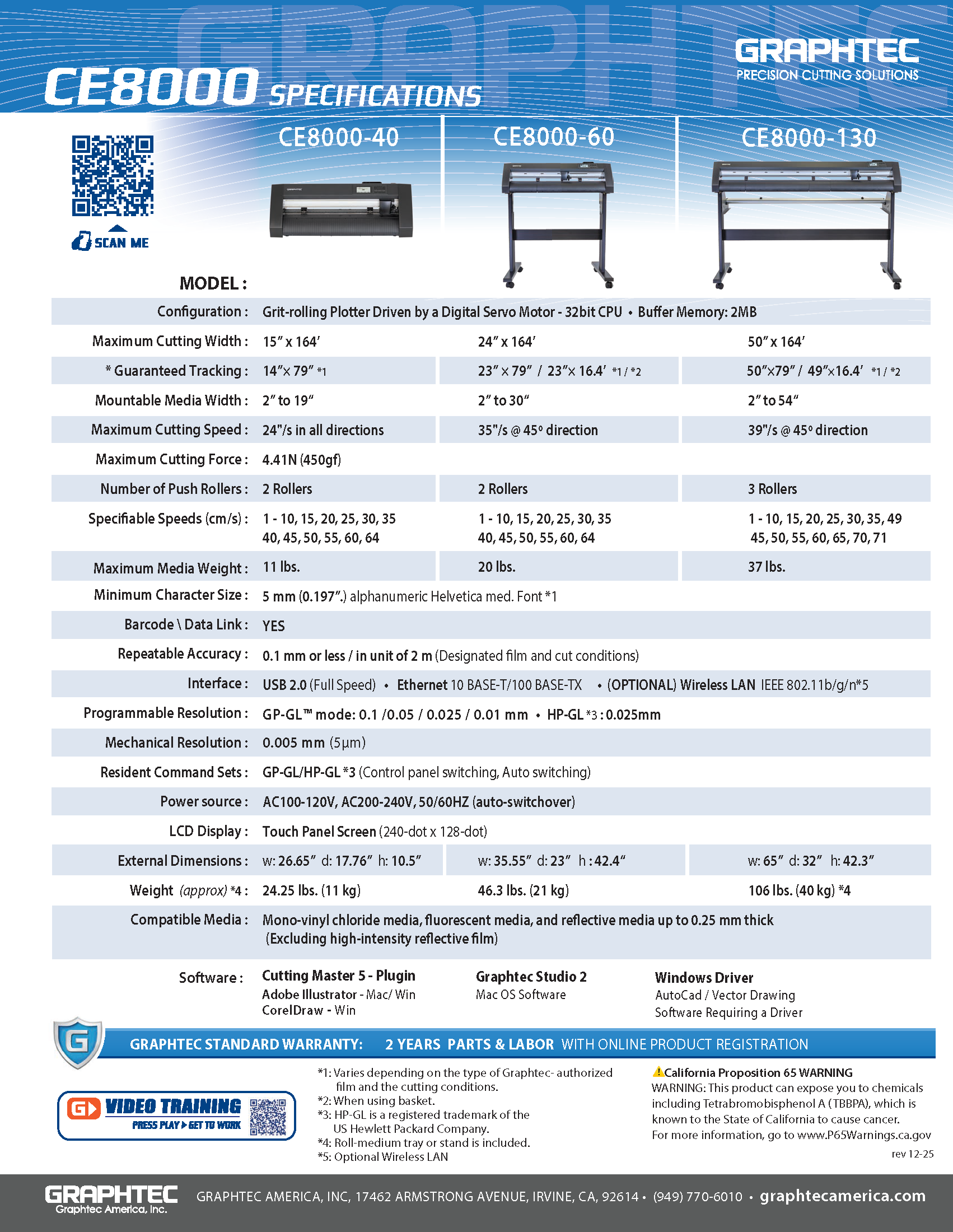

SPECIFICATIONS
BROCHURES

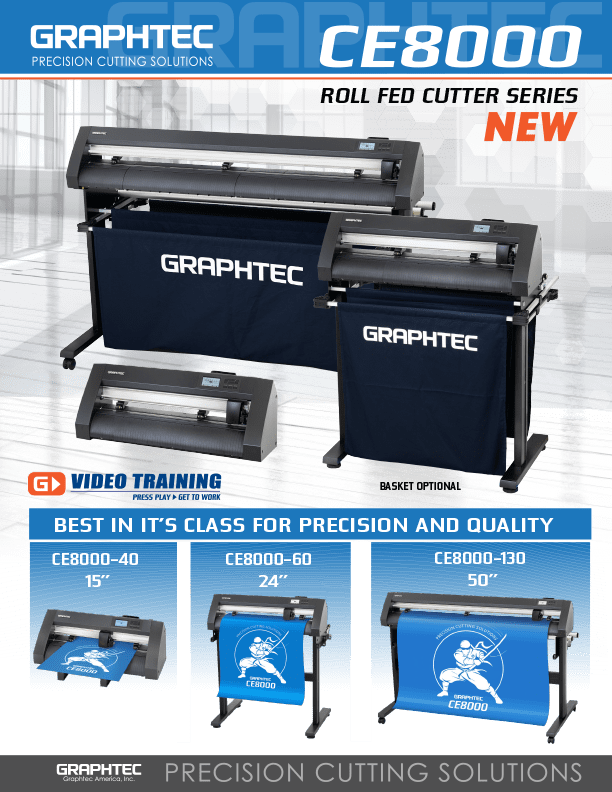

CE8000 Brochure
