RETURN TO DEFAULT SETTING FROM UNIT

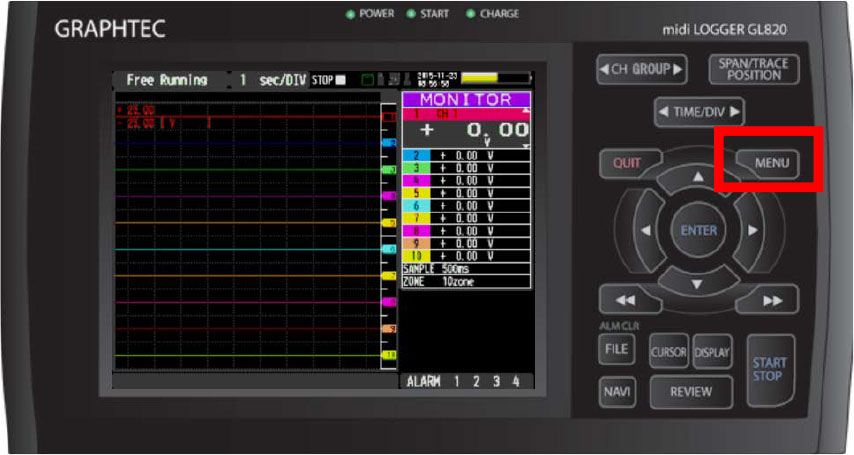

STEP 1: Click "MENU"

Graphtec Data Logger Data Platform Return to Default Setting From Unit Step 1

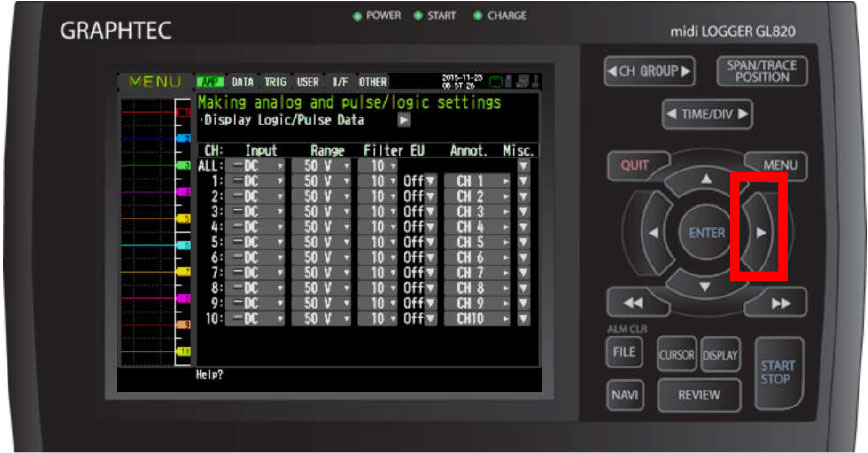

STEP 2: When in MENU screen, hit arrow Key to scroll through MENU options

Graphtec Data Logger Data Platform Return to Default Setting From Unit Step 2

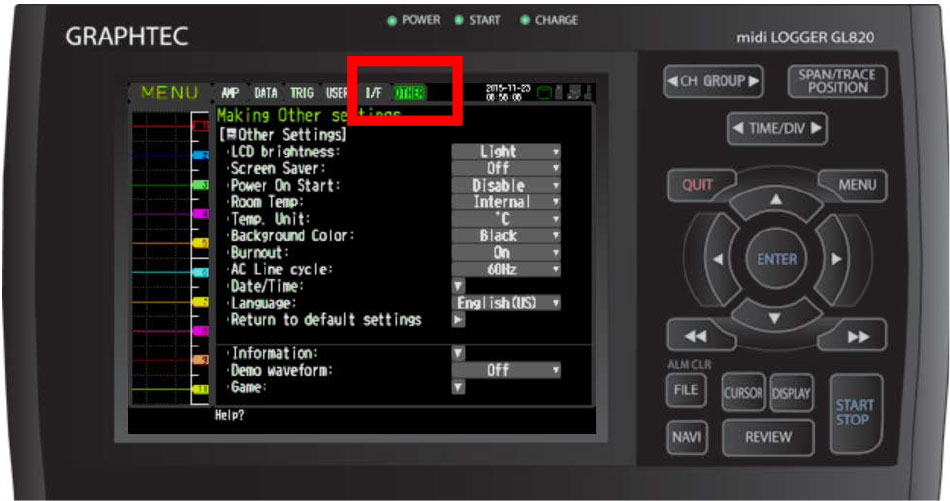

STEP 3: Scroll over to the OTHER tab

Graphtec Data Logger Data Platform Return to Default Setting From Unit Step 3

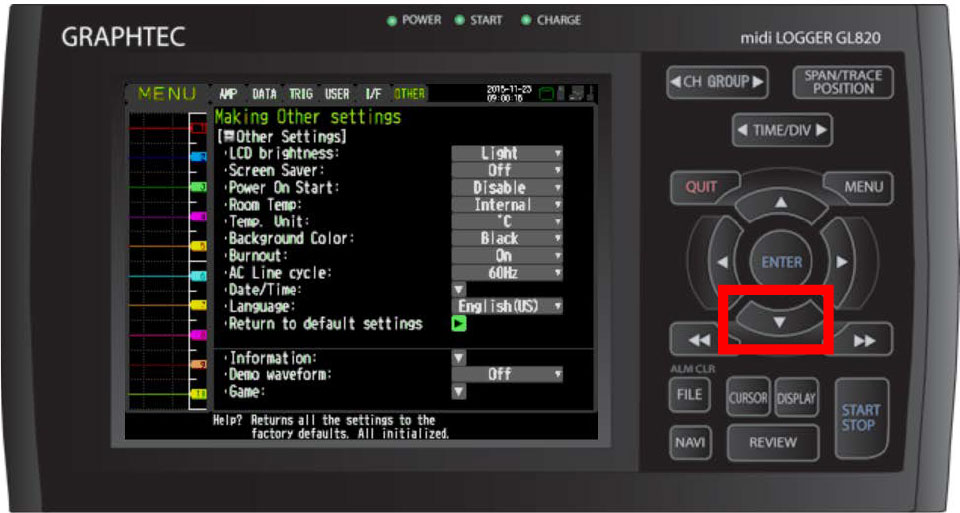

STEP 4: Use the down arrow to scroll down to Return to default settings

Graphtec Data Logger Data Platform Return to Default Setting From Unit Step 4

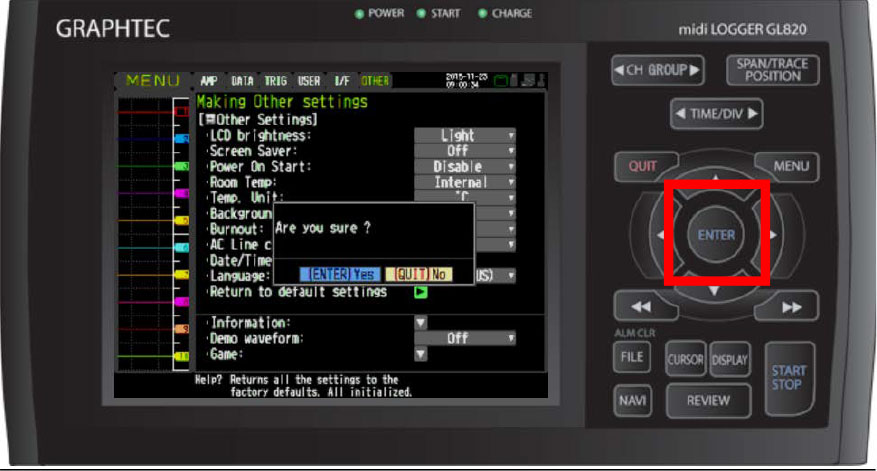

STEP 5: Click the ENTER button to choose yes

Graphtec Data Logger Data Platform Return to Default Setting From Unit Step 5

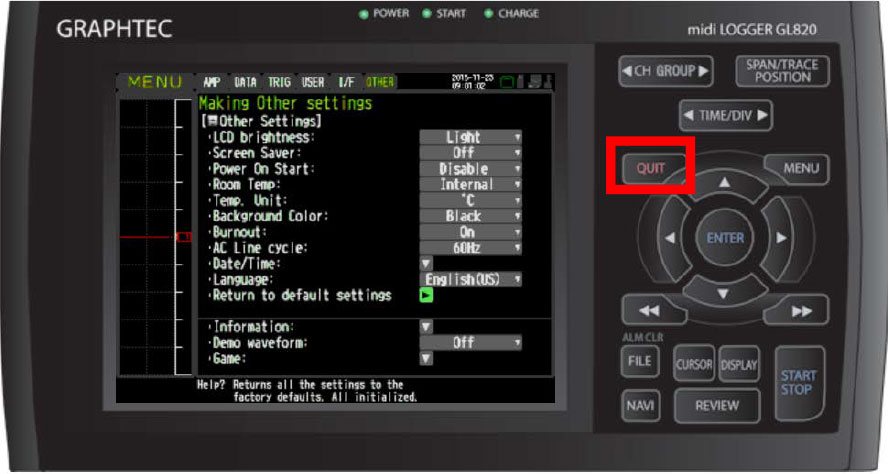

STEP 6: After you have selected return to default settings, hit the QUIT button to return to main screen.

Graphtec Data Logger Data Platform Return to Default Setting From Unit Step 6
