GL2000 HV DATA LOGGER
Main | Features | Ethernet (LAN) & USB | Software | Specifications | Accessories | Download
ACCESSORIES
STANDARD ACCESSORIES
AC adapter with power cable
Quick start guide and Safety guide
CD-ROM (PC application software, User manual)
Protective Rubber Cover (attached to the main body)
Tilt stand set (including mounting screws M4)
Screws (M3.5) for input terminal
Ferrite core (attach to cable for radiation reduction)
OPTIONS & ACESSORIES
| Item | Model No. | Description |
|---|---|---|
| Input/Output cable for GL | B-513 | 2 m long (no clip on end of cable) |
| DC drive cable | B-514 | 2 m long (no clip on end of cable) |
| Humidity sensor | B-530 | With 3 m long signal cable (with power plug) |
| Pelican case with custom foam inserts | B-536US-980/2000 | GL980/GL2000 Series pelican case with custom foam inserts, Weight 9.05 lbs Interior L 16.75" x W 11.18" x D 6.12" Exterior L 18.50" x W 14.06" x D 6.93" |
| Shunt resistor | B-551 | 250 ohms (Converts signal from “4-20mA” to “1-5V”.) |
| Battery pack | B-569 | Rechargeable Lithium-ion battery (7.2 V, 2900mAh) |
| Bracket for DIN rail | B-570 | Bracket for DIN rail (GL2000 main body), Build-to-order |
| Cover | B-579 | Rubber protector (for replacement) |
| Carrying case | B-581 | Comming soon |
| Input cable, Safe probe - BNC | RIC-141A | Insulated, 1:1 (42pf), 1.2 m long, 300 V DC, CAT II |
| Input cable, BNC - BNC | RIC-142 | Insulated, 1.5 m long, 1000 V DC, CAT II |
| Input cable, Banana - BNC | RIC-143 | Insulated, 1.6 m long, 600 V DC, CAT II |
| Clip, Alligator (small size) | RIC-144A | For RIC-143, Aperture 11 mm, 300 V DC, CAT II, Max. 15 A |
| Clip, Alligator (middle size) | RIC-145 | For RIC-143/147, Aperture 20 mm, 1000 V DC, CAT II, Max. 32 A |
| Clip, Grabber | RIC-146 | For RIC-143/147, Aperture 5 mm, 1000 V DC, CAT III, Max. 1 A |
| Input cable, Banana - BNC (Hi-voltage) | RIC-147 | Insulated, 1.6 m long, 1000 V DC, CAT II |
| Input terminal adapter | SMA-102 | Banana (receptacle) to BNC (plug), Insulated |
| AC Adapter | ACADP-20 | Input: 100 - 240 V AC, Output: 24 V DC |
GL2000 ACCESSORIES
NEW Thermal Printer
DP-581 H
Input / Output Cable for GL
B-513
Input Cable, Safe Probe-BNC
RIC-141A
Input Calbe, BNC to BNC
RIC-142
Humidity Sensor
B-530
250ohm Shunt Resistor
B-551 (1) or B-551-10 (10pck)
Input Cable, Banana - BNC
RIC143
Bracket for DIN rail
B-570
Clip, Alligator
(small)
RIC-144A
Clip, Alligator
(medium)
RIC-145
Clip, Grabber
RIC-146
Input Cable, Banana - BNC
(Hi-Voltage)
RIC-147

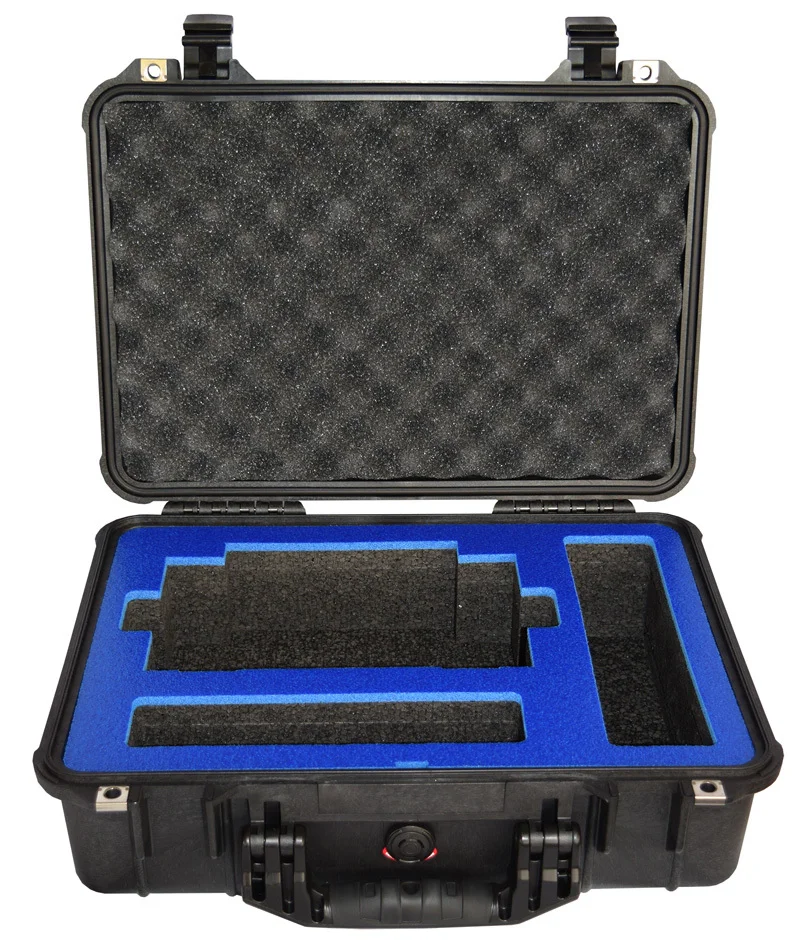

GL980/2000 Series Pelican Case w/custom foam inserts
B-536US-980/2000
