WIRELESS MEASUREMENT USING WIRELESS LAN*


Wireless LAN option enables the wireless communication with other device.
Connects to the GL100-WL wireless unit remotely when the GL840 is set as an access point.
When the GL840 is set as a station, PC and smart devices will be able to access the WLAN unit directly.

* Optional Wireless LAN (B-568) unit is available in limited region (U.S., and Canada).

HOW TO COMBINE THE GL100-WL

COMPUTE DATA LOGGER MAIN UNIT WITH GL840

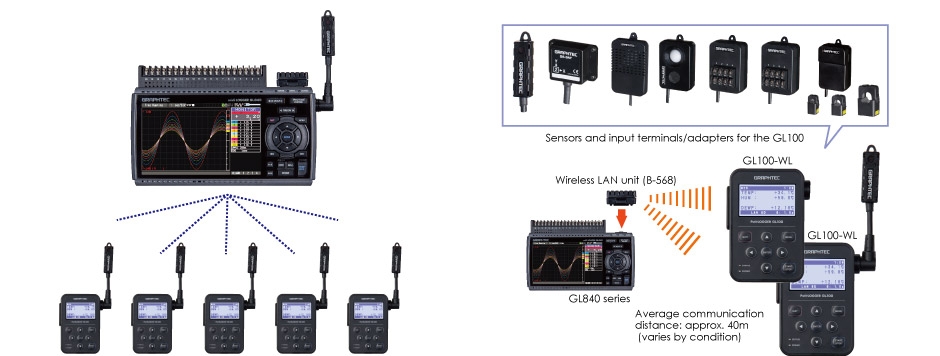

GL100-WL can now be connected to the GL840 as a remote sensor using the WLAN feature.  You can expand your measurement variety by adding the sensors available on the GL100-WL unit.  The measured value from the GL100-WL will appear in a single file along with the measurement value from the GL840 main inputs.  GL840 will take in direct information from the GL100-WL unit in real time.  GL840 supports up to 5 unit of the GL100-WL with the wireless connection.

GL840 connect up to 5 units of GL100-WL as its remote sensors.

GL840 connect up to 5 units of GL100-WL as its remote sensors.



Application Sample: Air conditioning performance test

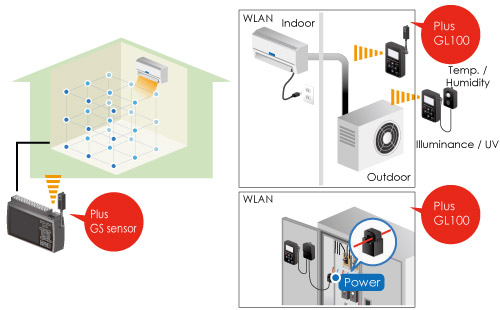

GRAPHTEC MIDI DATA LOGGER GL840 APPLICATION SAMPLE AIR CONDITIONING PERFORMANCE TEST







Measurement data from GL100-WL, GS sensor on the main unit can be displayed as a waveform and digital value.

HOW TO REMOTELY MONITOR GL840 BY PC OR SMART DEVICE

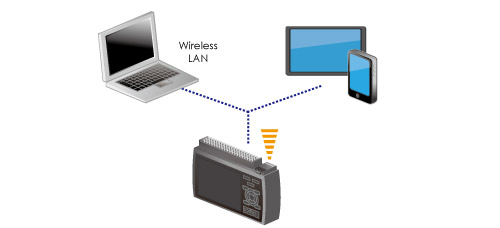

GRAPHTEC MIDI DATA LOGGER GL840 HOW TO REMOTELY MONITOR GL840 BY PC OR SMART DEVICE



Measured data can be monitored and controlled via PC or a smart device using the applicaiton software.

When connected using a wireless LAN, GL840 does not need to be connected via a USB cable.

Application Example: Equipment maintenance (remote monitoring)

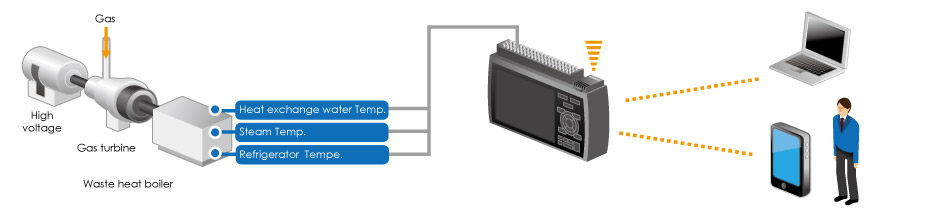

GRAPHTEC MIDI DATA LOGGER GL840 APPLICATION EXAMPLE EQUIPMENT MAINTENANCE REMOTE MONITORING


AVAILABLE CONFIGURATION

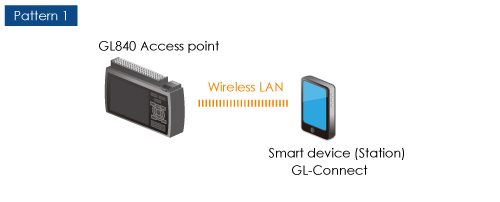

GRAPHTEC MIDI DATA LOGGER GL840 AVAILABLE CONFIGURATION PATTERN 1 ACCESS POINT WIRELESS LAN SMART DEVICE STATION GL-CONNECT

Pattern 1: Available Functions

  Display the data Control the Start / Stop Change the settings Saves the data Receives warning mail
Smart
Device		 YES YES YES N/A N/A

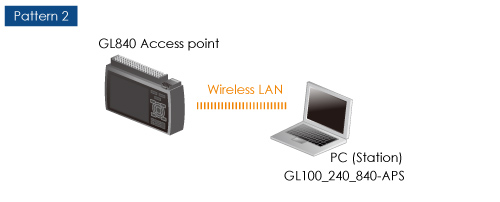

GRAPHTEC MIDI DATA LOGGER GL840 PATTERN 2 ACCESS POINT PATTERN 2 WIRELESS LAN SMART DEVICE STATION GL-CONNECT

Pattern 2: Available Functions

  Display the data Control the Start / Stop Change the settings Saves the data Receives warning mail
PC YES YES YES YES N/A

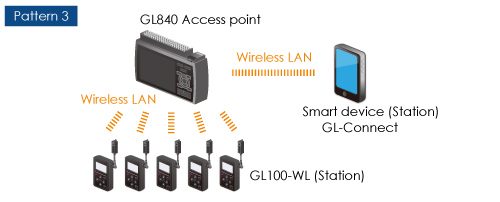

Pattern 3: Available Functions

  Display the data Control the Start / Stop Change the settings Saves the data Receives warning mail
Smart
Device		 YES YES YES N/A N/A

GRAPHTEC MIDI DATA LOGGER GL840 PATTERN 4 PC STATION LAN OR USB CABLE ACCESS POINT SMART DEVICE STATION WITH GL100-WL STATION

Pattern 4: Available Functions

  Display the data Control the Start / Stop Change the settings Saves the data Receives warning mail
Smart
Device		 YES YES YES N/A N/A
PC YES YES YES YES N/A

HOW TO REMOTELY MONITOR GL840 USING PRIVATE AND PUBLIC NETWORK

GRAPHTEC MIDI DATA LOGGER GL840 REMOTELY MONITOR GL840 USING PRIVATE AND PUBLIC NETWORK

GL240 can be connected to a LAN (Local Area Network) via an wireless LAN access point.

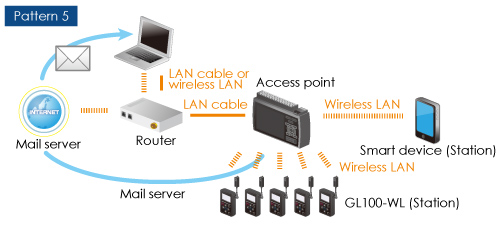

GRAPHTEC MIDI DATA LOGGER GL840 PATTERN 5
  Display the data Control the Start / Stop Change the settings Saves the data Receives warning mail
Smart
Device		 YES YES YES N/A N/A
PC YES YES YES YES YES

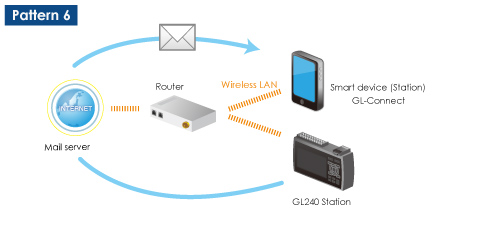

GRAPHTEC MIDI DATA LOGGER GL840 PATTERN 6
  Display the data Control the Start / Stop Change the settings Saves the data Receives warning mail
Smart
Device		 YES YES YES N/A YES

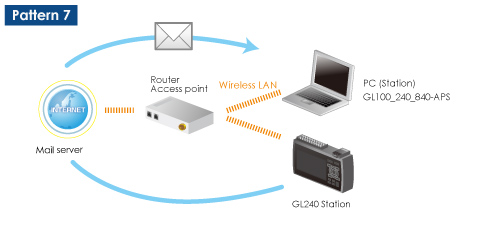

GRAPHTEC MIDI DATA LOGGER GL840 PATTERN 7
  Display the data Control the Start / Stop Change the settings Saves the data Receives warning mail
PC YES YES YES YES YES

HOW TO REMOTELY MONITOR GL840 VIA INTERNET

GRAPHTEC MIDI DATA LOGGER GL840 HOW TO REMOTELY MONITOR GL840 VIA INTERNET

Using a router that supports dynamic DNS service, GL840 can be monitored using the public Internet.

In other words, it is possible to connect to your GL840 wherever you are.



AVAILABLE CONFIGURATION


GRAPHTEC MIDI DATA LOGGER GL840 PATTERN 8 - SMART DEVICE RECEIVING ALARM MAIL ONLY
  Display the data Control the Start / Stop Change the settings Saves the data Receives warning mail
Smart
Device		 N/A N/A N/A N/A YES
PC N/A N/A N/A N/A YES

GRAPHTEC MIDI DATA LOGGER GL840 PATTERN 9 RECEIVING ALARM AMIL AND OTHER FUNCTIONS
  Display the data Control the Start / Stop Change the settings Saves the data Receives warning mail
Smart
Device		 YES YES YES N/A YES
PC YES YES YES YES YES

REMOTE MONITORING WITH CELLULAR GATEWAY


GRAPHTEC MIDI DATA LOGGER GL840 REMOTELY MONITORING WITH CELLULAR GATEWAY
  Display the data Control the Start / Stop Change the settings Saves the data Receives warning mail
Smart
Device		 YES YES YES N/A YES
PC YES YES YES YES YES

Combining the power of Graphtec GL840 solution with the Sierra Wireless RV50 modem provides a 4G/LTE connection for cellular remote access to the GL840.
