DATA ACQUISITION, DATA PLATFORM GL7000

Main | Features | Modules | Software | Specification & Sizes | Accessories | Support & Download | Study Guide



ACCESSORIES

UPDATE OCTOBER 5, 2017

Item Model Description
Probe for logic/pulse RIC-10 4ch input (set of alligator clip and IC clip) for the GL7-L/P module
Safety probe RIC-141A 1:1 42pF, Length 1.2 m, 300VDC, CAT II
Isolated BNC-BNC cable RIC-142 Lengh 1.5 m, 1000 VDC, CAT II
Isolated BNC-Banana cable RIC-143 Length 1.6 m, 600 VDC, CAT II
Alligator lip (small) *2 RIC-144A Aperture: 11 mm, 300VDC, CAT II, MAX15A
Alligator lip (middle) *2 RIC-145 20 mm, 1000 VDC, CAT III, MAX32A
Grabber clips*1 RIC-146 Aperture: 5mm, 1000 VDC, CAT III, MAX1A
Input/output cable for GL B-513 2 m, bare tips
Humidity sensor*1 B-530 3 m, with a dedicated power connector
Humidity sensor power box B-542 Humidity sensor, 10-wiring, built to order
M3 screws with flat washers B-542 Humidity sensor, 10-wiring, built to order
Shunt resistance 250Ω B-551 250Ω, rated power of 1W, maximum service voltage of 15.8 V, built to order
Sync cable for GL7000 B-559 Sync cable between devices
DSUB-screw terminals conversion connector B-560 DSUB connecting conversion connector for DC strain module
SMA-BNC conversion cable B-562 SMA-BNC conversion cable (2m) for voltage output module
Carrying tool for GL7000 B-585 Carrying Tool for GL7000 Carrying tool for GL7000 (fits up to 3 modules)
Storage case for GL7000 B-586 Storage case for GL7000 (fits up to 3 modules)
Custom pelican case B-536US-7000 Custom Pelican Case for the GL7000 with inline foam cuts for module inserts.
Input connector R-560A Input connector (screw terminal type) for GL7-DCB
Additional terminal holding bracket for B-560A R-560AP Additional terminal holding bracket for B-560A
Extension cable for B-560A R-560-05 Extension cable for B-560A

*1 Allowable temperature range: -25 to +80ºC

*2 One each for red and black, Connect to RIC-143


Probe for logic/pulse (RIC-10)

Probe for logic/pulse (RIC-10)

Safety Probe (RIC-141A)

Safety Probe (RIC-141A)

Isolated BNC cable (RIC-142)

Isolated BNC cable (RIC-142)

Isolated BNC banana cable  (RIC-143)

Isolated BNC banana cable

(RIC-143)



Alligator clip (small) RIC-144A

Alligator clip (small) RIC-144A

Alligator clip (middle) RIC-145

Alligator clip (middle) RIC-145

Grabber clips (RIC-146)

Grabber clips (RIC-146)

Humidity sensor (B-530)

Humidity sensor (B-530)


Custom pelican case (B-536US-7000)

Custom pelican case (B-536US-7000)

Shunt resistance 250Ω (B-551)

Shunt resistance 250Ω (B-551)

Carrying Tool (B-585)

Carrying Tool (B-585)

Input connector (screw terminal type) for GL7-DCB, R-560A

Input connector (screw terminal type) for GL7-DCB, R-560A

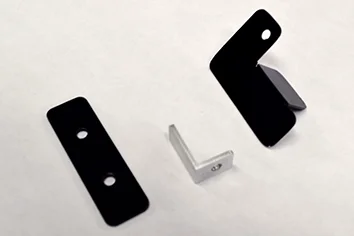

Additional terminal holding bracket for R-560AP

Additional terminal holding bracket for R-560AP

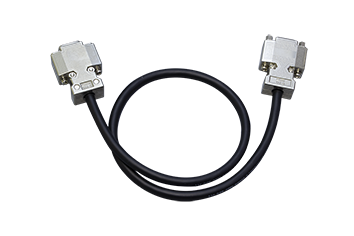

Extension cable for R-560-05

Extension cable for R-560-05

Storage case for GL7000 (B-586)

Storage case for GL7000 (B-586)
