Graphtec Data Platform GL7000 Data Acquisition Platform for Signal On Demand Versatility


MODULAR DATA ACQUISITION PLATFORM



VERSATILE MODULE-BASED PLATFORM WITH

FOCUS ON ADD-ON CAPABILITY TESTING EQUIPMENT



GL7000 Data Platform is a module-based data acquisition platform with standalone mechanism that provides complex testing for voltage, temp, high speed voltage, high voltages, accelerometers, and strain gauges.  The standalone system gets the data up and running quickly and accurately.  By providing a true standalone test systems with touch panel display or PC-based software opens you to a quick launch cycle for a scaled test system, measurements from different sensors can be added on with signal specific modules.  The 1MS/s maximum sampling capability provides dynamic signal recording capacity for applications involving fast changing signals.    Our focus is to eliminate the process necessary to configure your data acquisition and get the data to you as quickly as possible so that you can focus on your analysis and solving the important matters involving your test analysis.




Experience the Power of Graphtec GL7000 Data Acquisition Platform

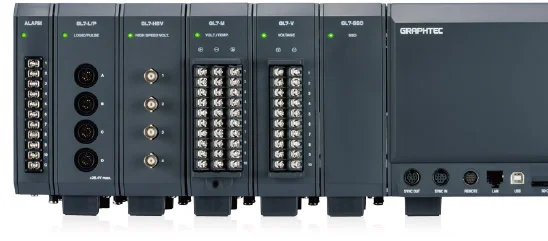

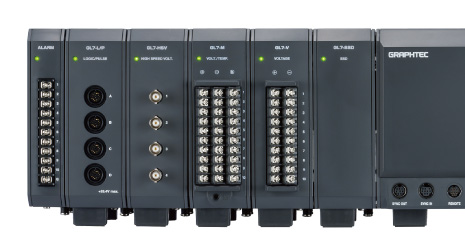

Modules allow wide range of measurements

Ability to adapt to a wide range of applications in various measurement scenarios by extending different types of input module.

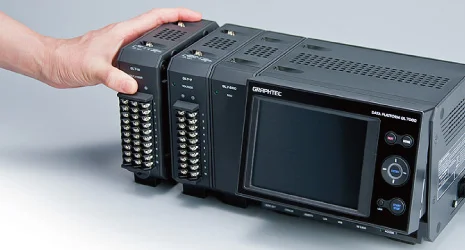

Modules extensions

Pick your modules and eliminate added-cost by selecting your measurements based on your basic needs first. Additional modules can be added on in the future.



Touch panel system

Intuitive operation using touch panel display.
Able to operate with cursor keys with the same set up as the midi LOGGER GL series.



Supports multiple storage

Equipped with various data collection medium and network functions to adapt to wide variety of recording needs.


Key Features

  • Analog Low Pass Filter (Anti-Aliasing) for noise cancellation.

  • Versatile input modules for various signal levels.

  • Standalone system with capability to enhance future test signal requirement.

  • Enhanced memory capability for extended recording on four different memory medium.

  • Compatible software usages with our other portable GL data logger instruments.

  • Software package included with the purchase of the platform.

  • Dual sampling capability in recording long-term data along transient dynamic data at the same time based on trigger.



Applicable Markets

  • Aerospace and Automotive Components Manufacturing

  • Manufacturing and R&D

  • Construction & Building Maintenance

  • Machinery and industrial Process Measurement

  • Electrical equipment industry

  • Transportation equipment industry (Rails)

  • Energy (Electricity, Gas) and Utility Businesses

  • High Precision/Semiconductor Equipment Development

  • Academic and Research Communities




DATA ACQUISITION MODULES / DATA ACQUISITION APPLICATIONS

Item

Agriculture, Forestry, and Fisheries

Construction, & Public Works

Machinery industry

Electrical equipment industry

Transportation equipment industry

Energy (Electricity, Gas)

Voltage module

GL7-V

  • Solar radiation, CO2
  • Moisture, PH
  • Strength of the wood
  • Tensile strength of the material
  • Load of press machine
  • Valve opening and closing angle
  • UPS test
  • Operation dislocation
  • Sensor development
  • Torque in the converter
  • Automotive battery test
  • Water heater control circuit

Voltage/Temp. module

GL7-M

  • Temperature wind speed in plant
  • Aquaculture environmental temperature
  • Indoor and outdoor temperature
  • Adiabatic wall temperature
  • Machine tool temperature
  • Aging chamber temperature
  • Air conditioner temperature
  • Refrigerator temperature
  • Environmental testing
  • Engine room temperature
  • Environmental testing, Cold climates test
  • Bearing durability test
  • Water heater temperature

High-speed voltage

GL7-HSV

  • Flow measurement
  • Displacement measurement
  • Machine/motor load
  • Inverter control signal
  • Sensor operating characteristics
  • Airbag test
  • Injection characteristics
  • Inverter control signal

High voltage module

GL7-HV

  • Power supply measurements
  • Power supply measurement of equipment
  • Power supply to the machine
  • High voltage circuit
  • Power supply measurements
  • Inverter control signal
  • Battery for electric vehicles
  • Hybrid vehicle battery
  • High voltage circuit
  • Inverter control signal

Bridge module

GL7-DCB

  • Pressure of fishing nets
  • Water pressure measuremen
  • Strain of the building
  • Research and maintenance of structure
  • Load of the structure
  • Distortion of the press
  • Distortion of welding
  • Tensile strength test
  • Substrate strain
  • Distortion at the opening and closing operation
  • Distortion in the opening and closing of the door
  • Distortion in the vibration
  • Distortion of body
  • Distortion of the structure

Charge module

GL7-CHA


  • Seismic isolation measurement
  • Research and maintenance of structure
  • Vibration of installed products
  • Movement of the robot
  • Vibration of the motor, pump
  • Vibration of bearings
  • Vibration of the enclosure
  • Drop test
  • Substrate vibration
  • Running test
  • Shaking test
  • Vibration of an engine
  • Vibration of the enclosure

Logic/Pulse module

GL7-L/PO

  • Plant factory
  • Precipitation

  • Control signal of the device
  • Gear rotation speed
  • Flow velocity, flow rate
  • Control signal of the machine
  • Rotation of the motor
  • Pulse count
  • Rotation of the engine
  • Rotation of the motor
  • Control signal
  • Flow velocity, flow rate

Voltage output module

GL7-DCO


  • Seismic test
  • Vibration reproduction
  • Machine motion reproduction
  • Operating condition reproduction
  • Test reference signal
  • Machine movement reproduction
  • Driving vibration reproduction
